Executive Summary

The DFXD 31M Articulated Boom Concrete Pump Truck represents a cutting-edge solution in the mobile concrete pumping industry, engineered to meet the demanding requirements of modern construction workflows. With an impressive maximum vertical conveying distance of 31 meters and horizontal reach extending to 30 meters, this heavy-duty pumping apparatus delivers exceptional placement flexibility across diverse job site configurations. The truck-mounted design integrates advanced hydraulic engineering with a dependable diesel-powered drivetrain, ensuring uninterrupted operation in challenging construction environments where traditional concrete placement methods prove inefficient or impractical.

Designed specifically for large-scale infrastructure and commercial construction applications, the DFXD articulated boom pump truck combines substantial throughput capacity with intelligent hydraulic system architecture. The vehicle's 180 cubic meters per hour productivity rating positions it competitively among mid-to-high capacity concrete pumps, making it particularly suitable for high-rise construction, bridge engineering, tunnel projects, and extensive floor slab operations. The incorporation of premium-grade core components—including precision-engineered bearings, high-pressure gear systems, and industrial PLC control integration—ensures long-term reliability and minimized maintenance intervals across demanding operational cycles.

This concrete pump truck leverages dual-configuration flexibility with German Man or Isuzu powerplants paired alongside Sinotruk Sitrak or Isuzu chassis platforms. Such engineering diversity enables construction enterprises to select powertrain combinations aligned with regional service network availability, parts accessibility, and specific project site requirements. The vehicle's substantial 44,000 kg operating weight provides necessary stability during high-volume pumping operations, while the sophisticated open-loop hydraulic system maintains consistent boom control responsiveness throughout extended deployment periods.

Performance & Engineering

The DFXD 31M concrete pump truck's performance envelope centers on its impressive 180m³/h maximum theoretical pumping capacity, achieved through synchronized operation of high-displacement hydraulic cylinders and precision-machined concrete cylinders. The pumping assembly integrates robust pressure vessel construction with industrial-grade motors and advanced gearbox systems capable of transmitting substantial mechanical loads without premature wear. Maximum export pressure reaching 8.5MPa ensures adequate concrete flow through extended delivery pipelines, while the 32MPa hydraulic system pressure provides responsive boom actuation and precise placement control.

Power delivery originates from trusted diesel powerplants—either German Man or Isuzu engines—selected for their proven durability in heavy-duty commercial vehicle applications. These Euro-compliant power units deliver optimal fuel efficiency across varying load conditions while maintaining sufficient reserve capacity for sustained high-output pumping operations. The powertrain integration with Sinotruk Sitrak or Isuzu truck chassis provides proven automotive foundations featuring wheelbase configurations of 1950+4500+1400mm or 2100+4325+1370mm, delivering appropriate weight distribution and drivability for site mobilization and positioning.

Chassis construction incorporates heavy-duty suspension systems and reinforced frame architecture engineered to support continuous pumping operations without structural fatigue. The vehicle's overall dimensions of 13800×2550×4000mm balance transportability with the stability requirements of heavy boom loads during active pumping. Durability engineering extends throughout the drivetrain, hydraulic circuits, and boom articulation mechanisms, with the complete unit backed by a comprehensive 1-year warranty covering defect resolution and component replacement as required.

Key Advantages & Features

• 31-Meter Vertical Reach Capability: Exceptional boom extension enables concrete placement at significant heights without intermediate pumpline infrastructure, reducing setup complexity and increasing jobsite efficiency for high-rise and elevated structure construction projects.
• 180m³/h High-Volume Output: Substantial concrete delivery rate minimizes placement cycle times on large pours, enabling construction schedules to progress rapidly while maintaining consistent concrete quality throughout extended pumping operations.
• Open-Type Hydraulic System Architecture: The 32MPa hydraulic configuration provides smooth, responsive boom control with excellent thermal management characteristics, ensuring consistent performance during prolonged deployment in demanding thermal environments.
• Versatile Powertrain Configuration: Choice between German Man or Isuzu engines paired with Sinotruk Sitrak or Isuzu chassis enables fleet standardization aligned with existing service infrastructure and regional dealer support networks.
• Industrial Component Integration: Premium core components including precision bearings, hardened gears, industrial PLC control systems, and high-capacity pump assemblies deliver extended service intervals and reduced lifecycle maintenance costs.
• 8.5MPa Maximum Export Pressure: Substantial pressure capability ensures reliable concrete delivery through extended pipeline configurations, vertical lifts, and challenging mix designs requiring higher pumping resistance.
• 44,000 kg Operating Weight: Substantial vehicle mass provides excellent stability during active pumping, minimizing outrigger requirements and enabling faster setup and repositioning between pour locations.
• Comprehensive Testing Documentation: Included machinery test reports and video outgoing-inspection documentation verify factory quality standards and provide procurement teams with required compliance verification materials.

Specifications Table

Ideal Applications

• High-Rise Building Construction: The 31-meter vertical reach capability makes this pump truck exceptionally suited for tower construction projects ranging from medium-rise commercial buildings to residential high-rises, enabling efficient concrete placement to elevated floor levels without intermediate pumping stations.
• Bridge and Infrastructure Engineering: Extended horizontal reach combined with high-volume output capacity supports bridge deck pours, abutment construction, and elevated highway structure projects requiring substantial concrete placement over obstacles or difficult terrain configurations.
• Industrial Facility Development: Large-volume manufacturing plants, warehouse complexes, and commercial distribution centers benefit from the pump truck's rapid pour capability and extended reach for covering expansive floor areas with minimal repositioning requirements.
• Tunnel and Underground Construction: The articulated boom configuration provides maneuvering flexibility within constrained tunnel environments, while the substantial export pressure ensures reliable concrete delivery through delivery pipelines extending significant distances from the pumping unit.
• Commercial and Civic Construction Projects: Shopping centers, office complexes, educational facilities, and healthcare structures requiring substantial concrete frame construction benefit from the equipment's combination of throughput capacity, placement flexibility, and operational reliability across extended project durations.
• Pre-Cast and Pre-Fabricated Component Installation Support: The pump truck facilitates grouting, infill, and connection concrete placement during pre-cast element assembly operations, providing mobile concrete delivery that adapts to varying installation configurations across complex structural systems.

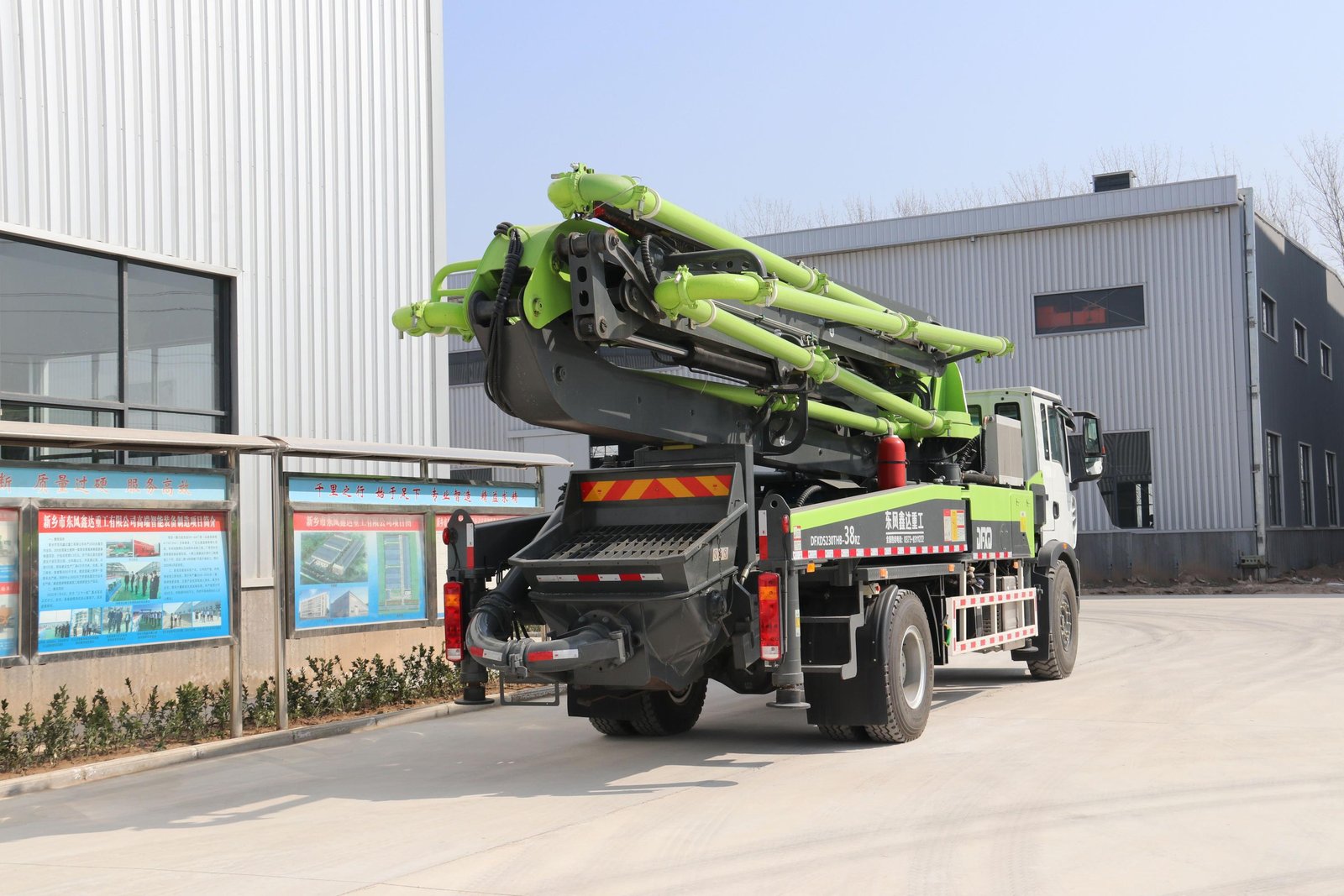

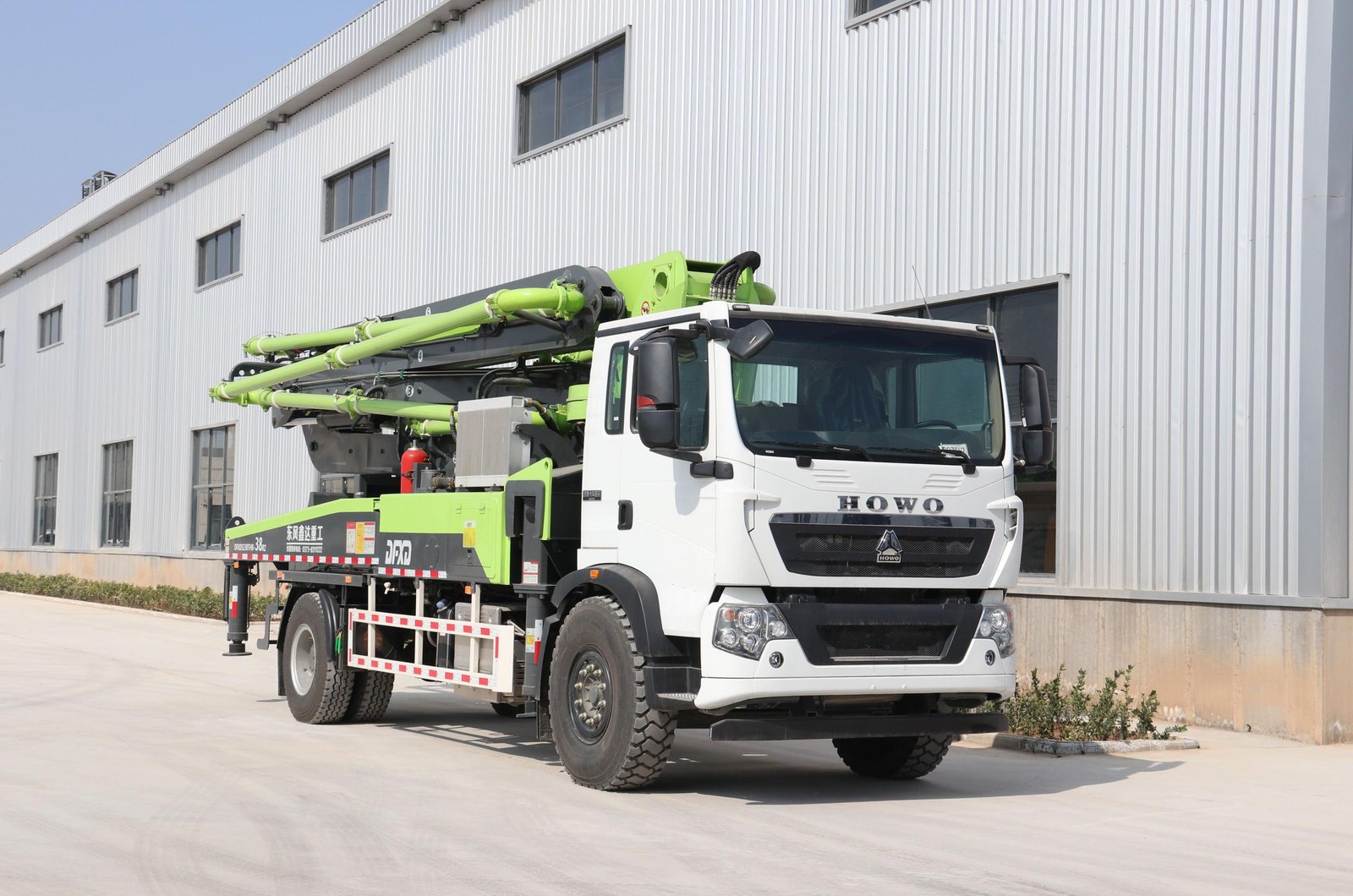

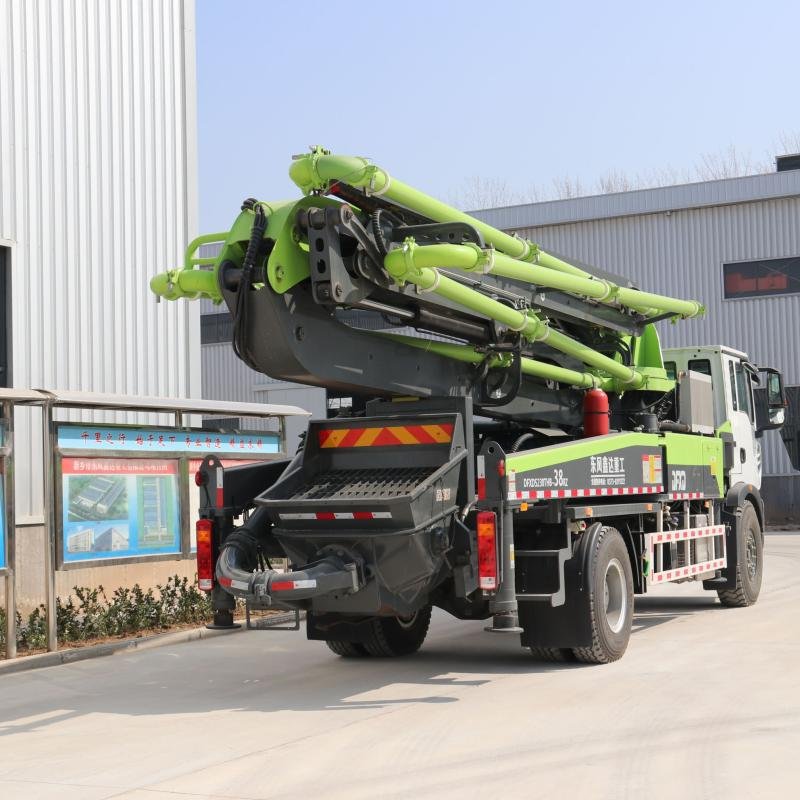

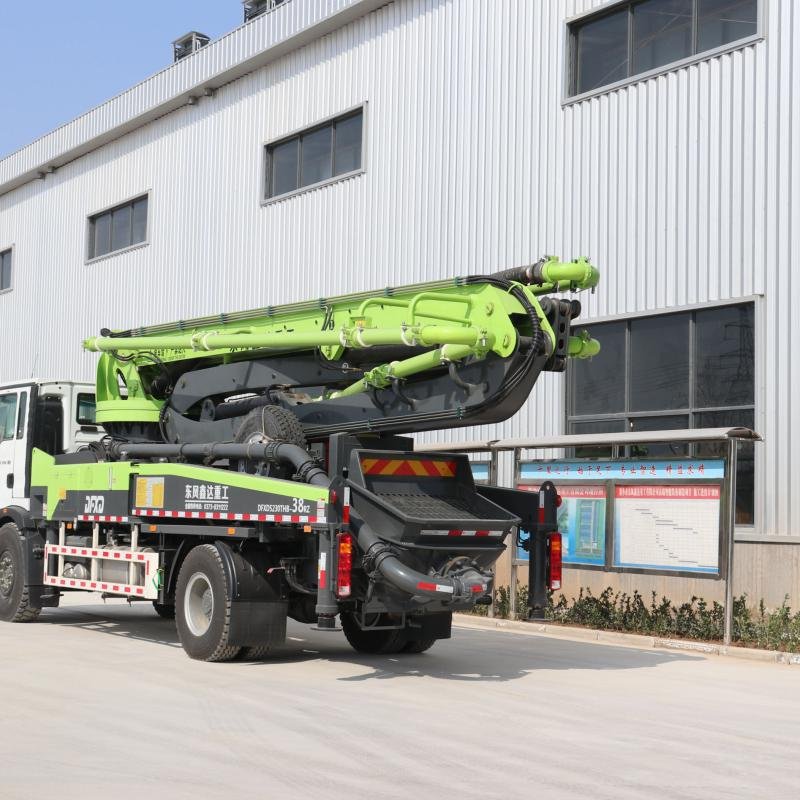

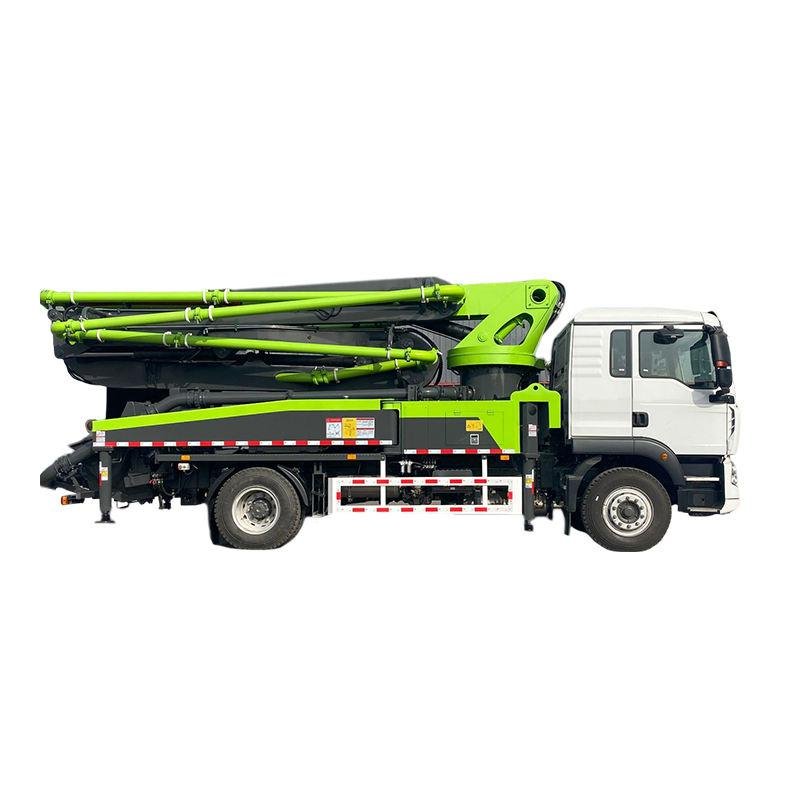

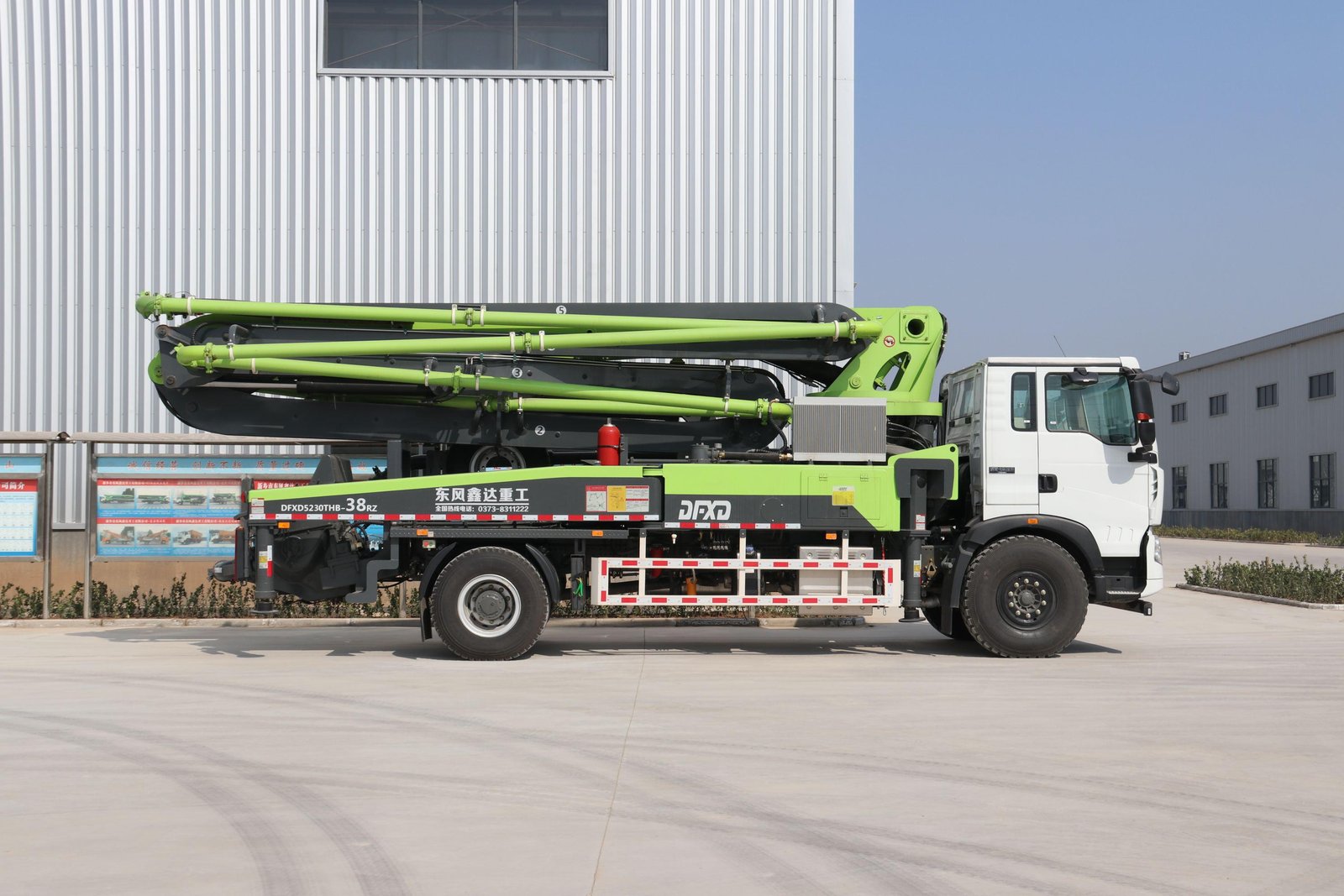

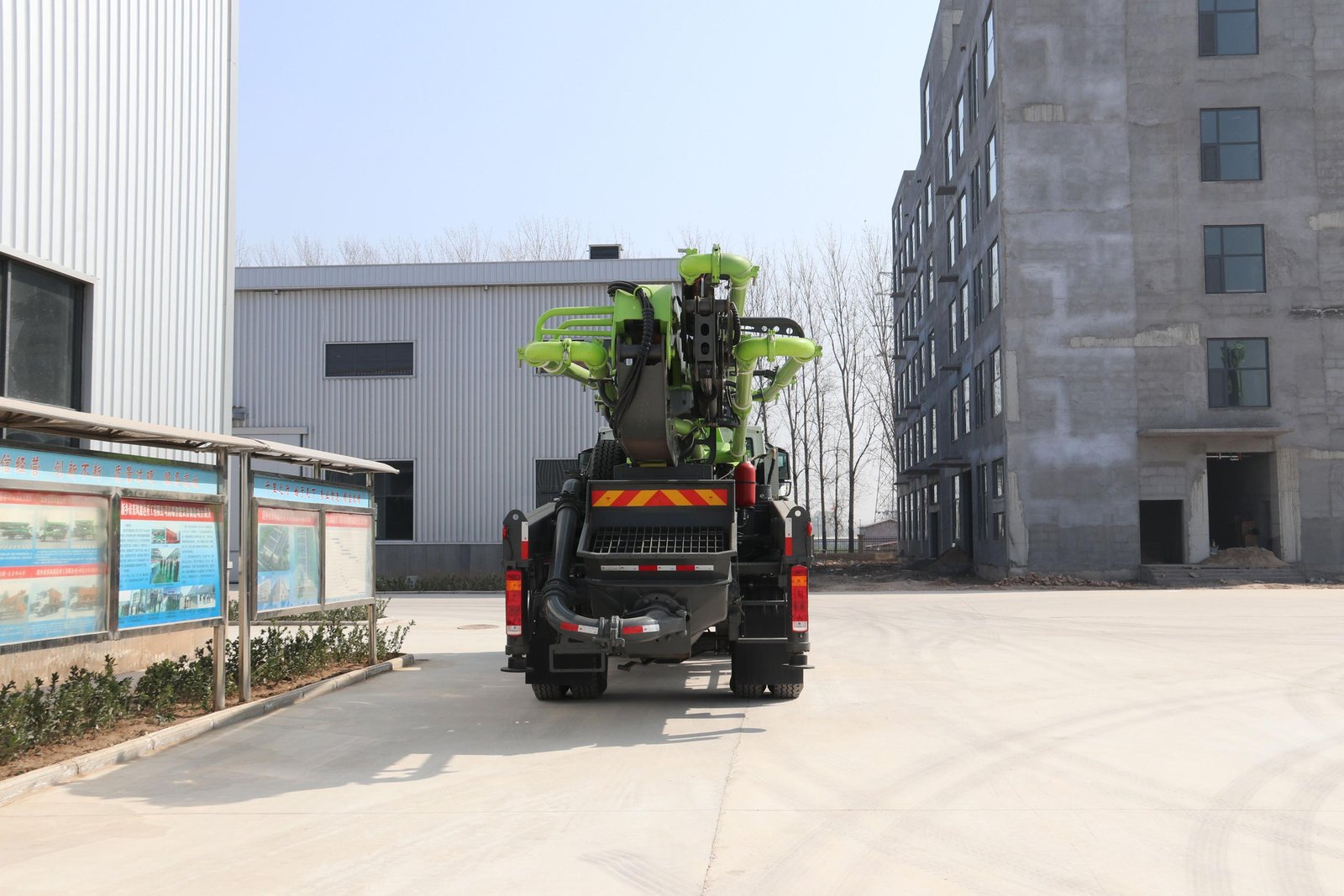

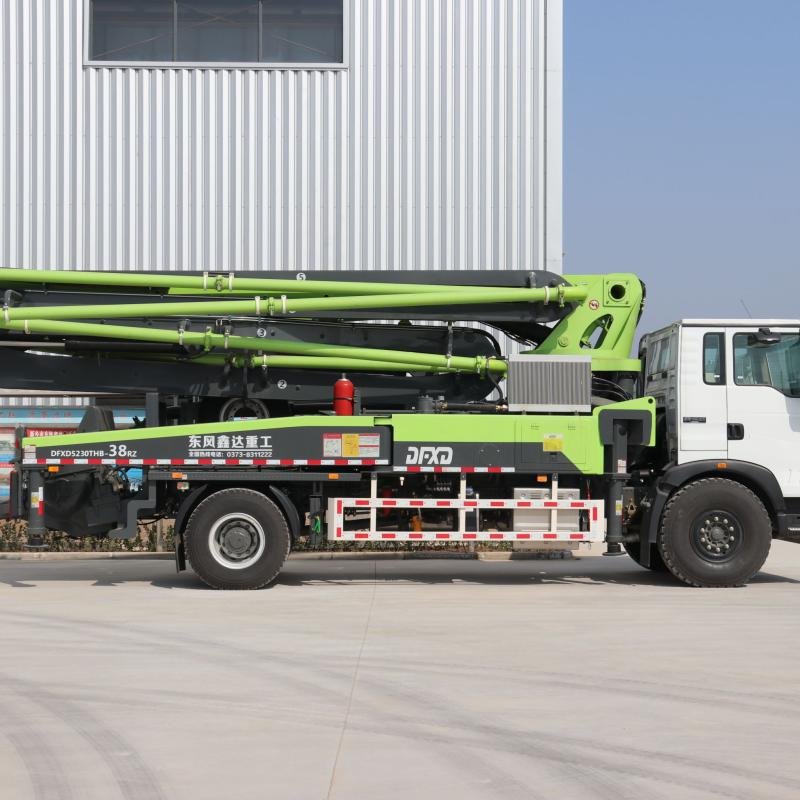

Product Image Gallery
