Executive Summary

The HOWO 371HP 6x4 30T Dump Truck represents a pinnacle of heavy-duty engineering transportation technology, purpose-built for demanding construction, mining, and infrastructure development applications. Manufactured by the renowned SinoTruck group under the prestigious HOWO brand, this 6x4 drive dump truck combines proven powertrain components with a reinforced chassis design that delivers uncompromising performance in the most challenging operational environments. With its powerful Weichai 9.7-liter six-cylinder diesel engine producing 371 horsepower and peak torque exceeding 2,500 Nm, this heavy-duty tipper truck is engineered to handle payloads ranging from 21 to 30 metric tons with remarkable efficiency and reliability.

This construction-grade dump truck features a spacious 5,400mm x 2,300mm x 1,500mm cargo body constructed from high-strength wear-resistant steel, ensuring extended service life even under continuous heavy loading and unloading cycles. The truck's overall dimensions of 8,245mm x 2,550mm x 3,450mm provide optimal maneuverability while maintaining the robust construction necessary for sustained heavy-duty operations. Positioned in the engineering transportation market segment, this HOWO dump truck serves contractors, quarry operators, mining companies, and large-scale infrastructure development projects requiring dependable material handling capabilities.

The vehicle's Euro 3 emission compliance, combined with its proven manual 8-speed FAST transmission and durable 6x4 drivetrain configuration, makes it an ideal solution for markets where robust performance takes priority over the latest emission technologies. Backed by comprehensive after-sales support including video technical assistance and online support services, this new-condition dump truck offers B2B buyers a compelling combination of initial purchase value and long-term operational reliability.

Performance & Engineering

The heart of this heavy-duty dump truck is the Weichai WD615.47 engine, a legendary powerplant in the commercial vehicle industry known for its exceptional durability, fuel efficiency, and ease of maintenance. This 9.726-liter six-cylinder inline diesel engine delivers a maximum output of 371 horsepower at 2,200 rpm, with peak torque exceeding 2,500 Nm available at just 1,300-1,500 rpm. This torque characteristics provides exceptional low-end pulling power essential for heavy-load starts on inclines and soft ground conditions commonly encountered at construction sites and quarries. The engine's robust design incorporates advanced fuel injection technology and optimized combustion chamber geometry to achieve the ideal balance between power output and fuel consumption.

Power is transmitted through a FAST manual transmission featuring eight forward gears and one reverse gear, enabling operators to select the optimal gear ratio for varying load conditions and terrain gradients. The synchronized shifting mechanism ensures smooth power transitions while the wide gear spread accommodates both low-speed maneuvering and high-speed highway cruising. The 6x4 drive configuration provides excellent traction distribution across all four rear wheels, reducing ground pressure per tire and improving stability on uneven or soft surfaces. The vehicle's 10-tire configuration with dual rear axle setup contributes to its exceptional 30-ton gross vehicle weight capacity while maintaining ride comfort and tire longevity.

The chassis architecture features a reinforced ladder-type frame constructed from high-tensile steel, providing the structural rigidity necessary to withstand the dynamic stresses of heavy-load tipper operations. The suspension system employs heavy-duty leaf springs on both front and rear axles, designed to absorb road shocks while maintaining payload stability. The braking system utilizes air-assisted drum brakes on all wheels, providing consistent stopping power even under full payload conditions. With a fuel tank capacity of 300-400 liters, this dump truck offers extended operating range between refueling stops, minimizing downtime and improving overall fleet productivity.

Key Advantages & Features

• Powerful Weichai Powertrain: The proven Weichai WD615.47 engine delivers 371HP and 2,500+ Nm torque through a reliable 8-speed manual transmission, providing the exceptional pulling force required for heavy-duty tipper operations in challenging terrain conditions.
• Heavy-Duty Cargo Body: The 5.4m x 2.3m x 1.5m reinforced steel cargo body features thick wear-resistant floor plates and side walls, designed to withstand the abrasion and impact forces associated with continuous loading of aggregate, sand, gravel, and construction debris.
• 30-Ton Payload Capacity: With a gross vehicle weight rating exceeding 30 metric tons and a loading capacity of 21-30 tons, this dump truck maximizes payload per trip, reducing total transportation costs and improving project timeline efficiency.
• 6x4 Drive Configuration: The intelligent 6x4 drivetrain provides optimal traction distribution while maintaining reasonable tire wear characteristics, making it ideal for mixed road conditions from paved highways to unpaved construction site access roads.
• Extended Operating Range: The 300-400 liter fuel tank capacity enables extended operation between refueling stops, critical for remote construction sites and large-scale earthmoving projects where fuel logistics present challenges.
• Proven Componentry: Utilizing established brands including Weichai engines, FAST transmissions, and HOWO axles ensures parts availability and service network support across global markets, minimizing maintenance-related downtime.
• Operator Comfort & Safety: Three-passenger cab with manual air conditioning, manual windows, and left-hand steering configuration provides functional comfort for long shifts while maintaining visibility for safe tipper operations.
• Comprehensive After-Sales Support: Manufacturer-backed video technical support and online support services provide peace of mind for fleet operators, ensuring rapid resolution of technical queries and maintenance guidance.

Specifications Table

Ideal Applications

• Construction Site Material Transport: This dump truck excels at transporting sand, gravel, crushed stone, and excavated soil within construction sites and between quarries and project locations. Its 30-ton payload capacity significantly reduces trip frequency, while the robust suspension and reinforced body handle the harsh treatment typical of construction environments.
• Quarry and Mining Operations: The combination of high torque output, durable cargo body construction, and heavy-duty chassis makes this HOWO tipper ideal for quarry face loading and mineral transport. The wear-resistant steel body withstands the abrasive nature of aggregate materials, while the powerful engine handles steep quarry ramps.
• Infrastructure Development Projects: Large-scale road construction, dam building, and public works projects benefit from the reliability and payload efficiency of this heavy-duty dump truck. Its ability to operate on unpaved access roads while maintaining highway capability makes it versatile across project phases.
• Earthmoving and Excavation: For excavation contractors requiring on-site material removal, this 6x4 dump truck provides the traction and capacity needed to keep pace with hydraulic excavators and loading equipment. The manual transmission allows precise control during loading operations.
• Aggregate and Cement Distribution: Ready-mix operations and aggregate suppliers benefit from the combination of large fuel capacity for extended routes and the robust body construction that handles various material types without premature wear.
• Land Development and Foundation Work: Construction companies undertaking residential and commercial land development appreciate this truck's ability to handle both site clearing debris and foundation material delivery, reducing the need for specialized vehicles across project phases.

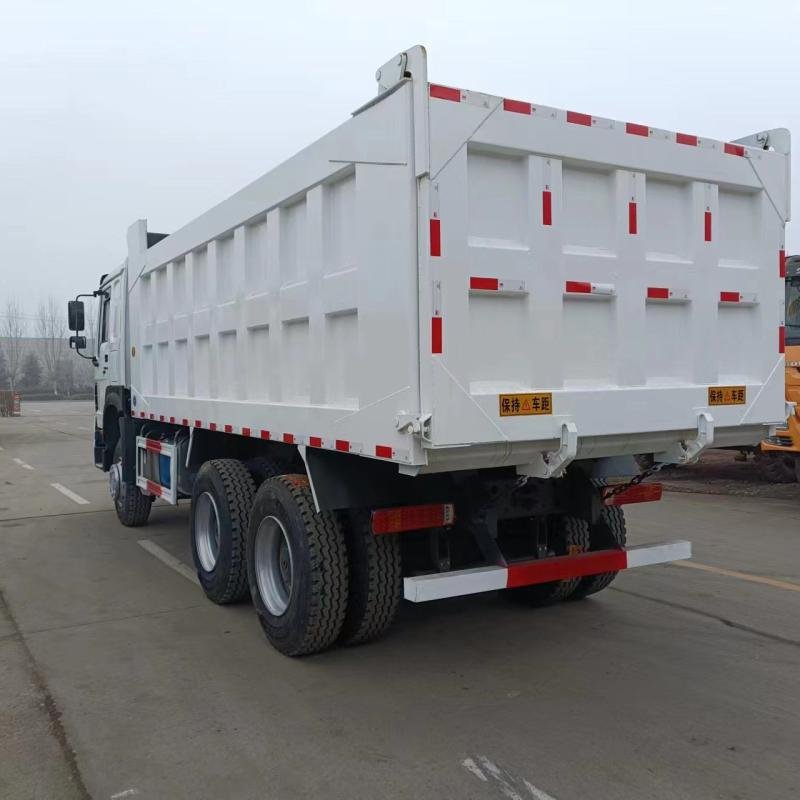

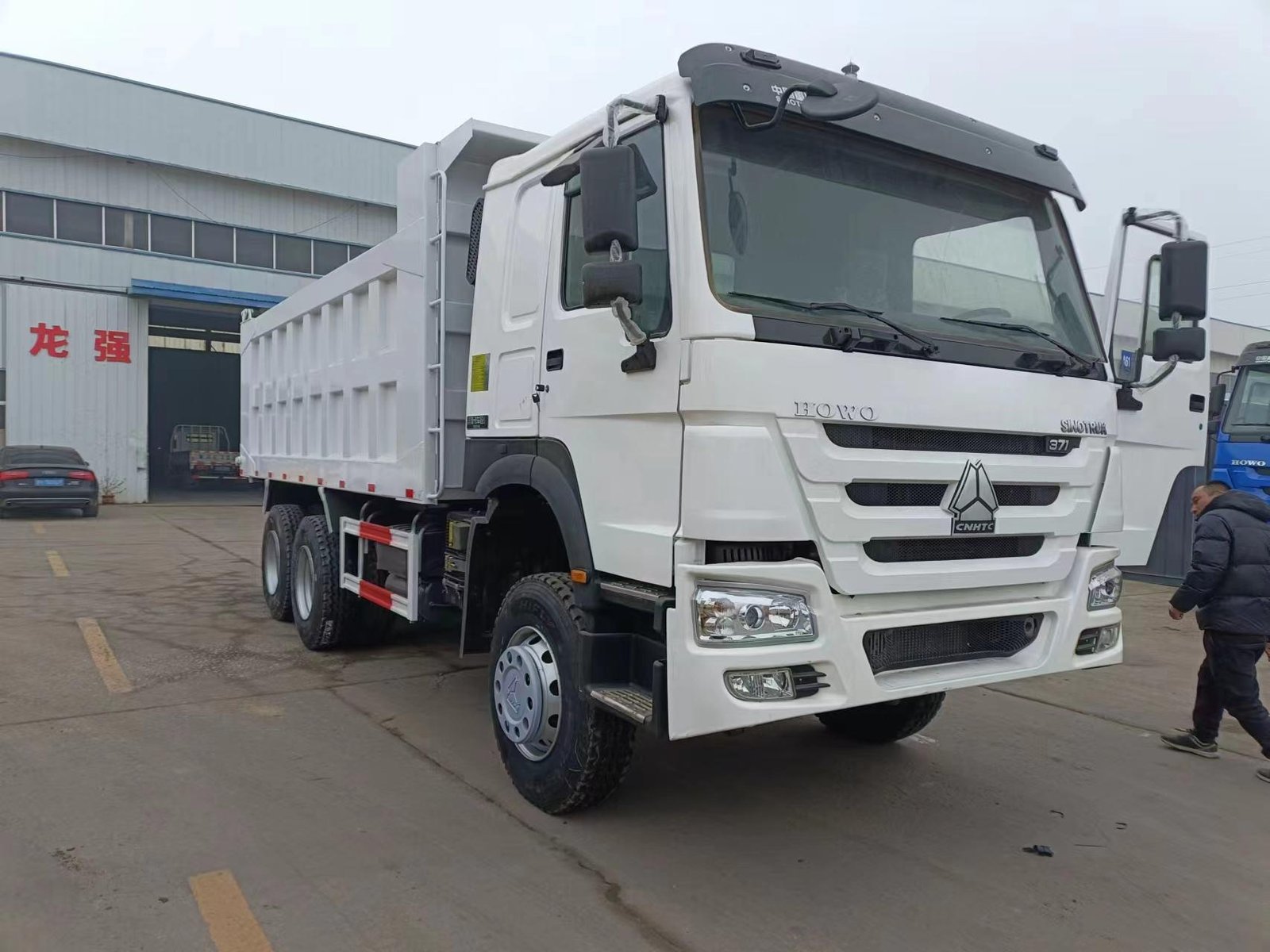

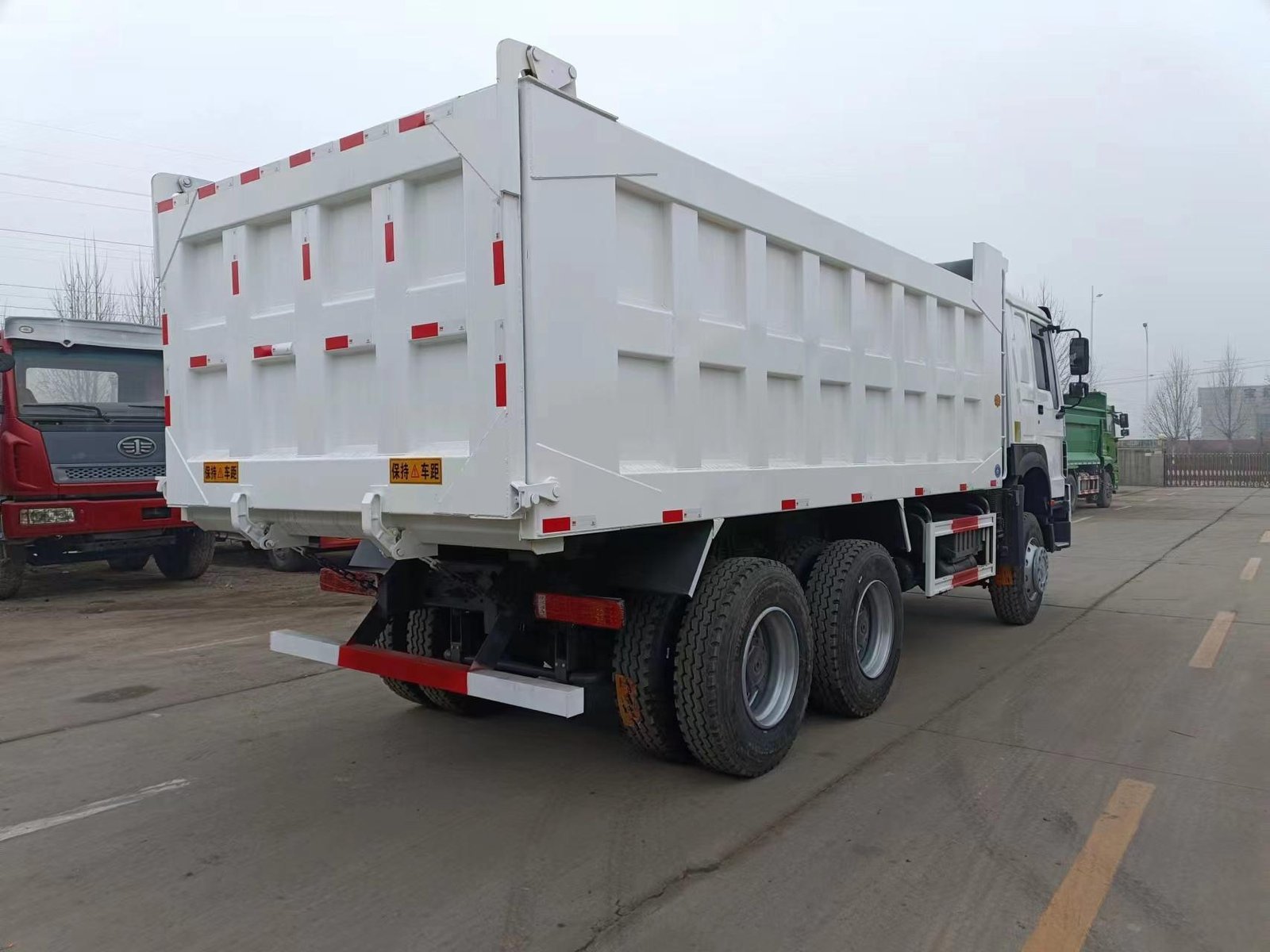

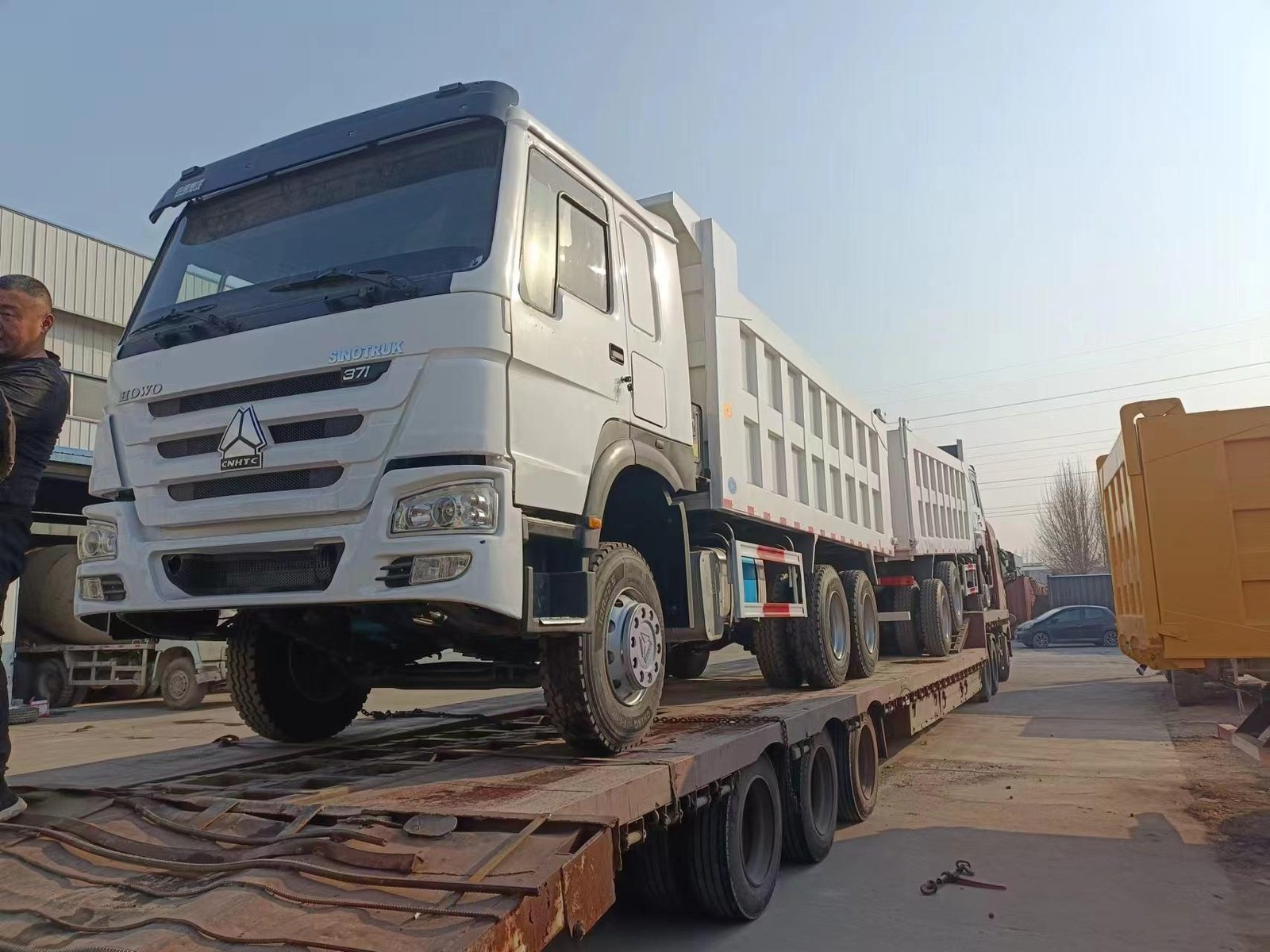

Product Image Gallery
