Executive Summary

The Isuzu 6x4 16-Ton 5-Section Telescopic Boom Truck-Mounted Crane represents the pinnacle of mobile crane technology, designed specifically for demanding commercial and industrial lifting applications across construction, infrastructure development, and heavy logistics sectors. This versatile truck-mounted crane integrates Isuzu's legendary durability with advanced hydraulic engineering to deliver exceptional lifting performance, superior operational efficiency, and unmatched reliability in challenging work environments.

Built on the proven Isuzu 6x4 chassis platform, this crane truck features a sophisticated 5-section hydraulic boom system that extends to an impressive maximum lifting height of 21 meters, enabling operators to tackle a wide range of lifting tasks from ground level to elevated work zones. The 16-ton lifting capacity positions this equipment as a mid-to-heavy range solution, perfectly suited for handling construction materials, structural steel components, precast concrete elements, and general cargo in various industrial settings.

Equipped with a powerful YUCHAI 6HK1-TCG60 engine, this truck-mounted crane delivers robust torque and consistent power output essential for demanding lifting operations. The integration of high-quality hydraulic components, including precision-engineered cylinders, pumps, and control valves, ensures smooth and responsive boom movements, allowing operators to execute precise lifts with confidence. This crane truck serves as an indispensable asset for construction companies, rental fleets, logistics providers, and industrial operations seeking reliable mobile lifting solutions.

Performance & Engineering

The engineering excellence of this Isuzu truck-mounted crane is evident in every aspect of its design and construction. The 6HK1-TCG60 engine provides reliable, fuel-efficient power that meets demanding operational requirements while maintaining compliance with current emissions standards. This engine delivers optimal torque characteristics essential for hydraulic system operation, ensuring consistent lifting performance regardless of workload conditions. The powerplant's proven reliability translates to reduced downtime and lower maintenance costs over the equipment's service life.

The 5-section telescopic boom system represents advanced hydraulic engineering, utilizing high-pressure hydraulic cylinders manufactured by established Chinese hydraulic specialists. Each boom section extends and retracts smoothly through precision-controlled hydraulic circuits, enabling operators to achieve exact positioning for various lifting scenarios. The hydraulic pump and valve systems work in concert to provide responsive control, allowing fine adjustments during critical lift operations. With a maximum working span of 19.5 meters and lifting height of 21 meters, this crane addresses the requirements of medium-to-large scale projects including building construction, bridge maintenance, and industrial facility installations.

The robust Isuzu 6x4 chassis provides exceptional stability and load-bearing capacity, supporting the crane's 31,000 kg operating weight while maintaining reliable handling characteristics on various terrain conditions. The heavy-duty suspension system and 295/80R22.5 18PR tires ensure adequate load distribution and excellent road performance, enabling efficient transport between job sites. The vehicle dimensions of 11,000 × 2,550 × 3,950 mm provide an optimal balance between crane stability and maneuverability in urban and confined work environments.

Key Advantages & Features

• 5-Section Hydraulic Telescopic Boom — The multi-section boom design enables flexible reach configurations, allowing operators to adapt the crane's working envelope to specific job requirements while maintaining structural integrity and lifting capacity throughout the extension range.
• 16-Ton Lifting Capacity — Substantial lifting capability positions this crane truck as a versatile solution for handling heavy construction materials, machinery components, and industrial equipment with a single piece of equipment.
• 21-Meter Maximum Lifting Height — Exceptional vertical reach enables efficient operation in multi-story construction, elevated installation projects, and maintenance applications without requiring additional equipment or scaffolding.
• Isuzu 6x4 Chassis Platform — The proven Isuzu commercial vehicle platform delivers legendary reliability, excellent fuel economy, and widespread parts availability, ensuring minimal operational interruptions and cost-effective ownership.
• High Operating Efficiency — Optimized hydraulic systems and responsive controls maximize work cycle throughput, enabling operators to complete more lifts per shift and improve overall project productivity.
• Complete Hydraulic System Package — Quality hydraulic cylinders, pumps, and control valves from established manufacturers ensure reliable performance, consistent precision, and extended service intervals.
• Mobile Operation Capability — Integrated truck chassis enables rapid deployment between job sites, eliminating the need for separate transportation arrangements and reducing project setup time significantly.
• Comprehensive Core Components — Equipped with essential mechanical components including pressure vessels, motors, bearings, gears, gearbox, and PLC control systems, ensuring complete operational capability from delivery.

Specifications Table

Ideal Applications

• Commercial Construction — This truck-mounted crane excels in commercial building projects where efficient material handling is essential for maintaining construction schedules and reducing manual labor requirements.
• Infrastructure Development — Bridge construction, highway maintenance, and utility installation projects benefit significantly from the crane's extended reach and substantial lifting capacity for handling structural components.
• Industrial Facility Operations — Manufacturing plants, warehouses, and distribution centers utilize this crane for equipment installation, maintenance operations, and bulk material handling tasks.
• Pre-cast Concrete Handling — The 16-ton capacity and precise hydraulic controls make this crane ideal for positioning pre-cast concrete panels, beams, and structural elements during building construction.
• Steel Structure Erection — Construction projects involving structural steel frameworks benefit from the crane's stability, reach, and lifting precision for safe and efficient steel component placement.
• Equipment Rental Fleets — Rental companies seeking versatile, reliable lifting equipment find this crane truck offers excellent return on investment through broad application coverage and strong demand across multiple industries.
• Emergency Response Operations — Municipal and industrial emergency response teams value the rapid deployment capability and substantial lifting capacity for disaster recovery and incident management scenarios.
• Solar and Renewable Energy Installation — Utility-scale solar installations and wind turbine maintenance operations require reliable mobile lifting solutions that this crane truck delivers effectively.

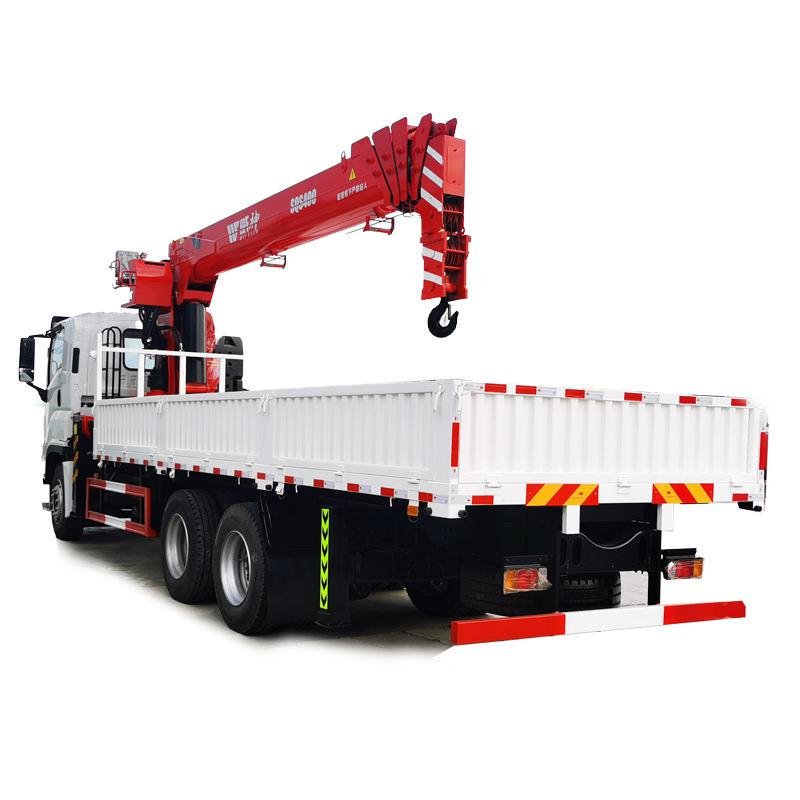

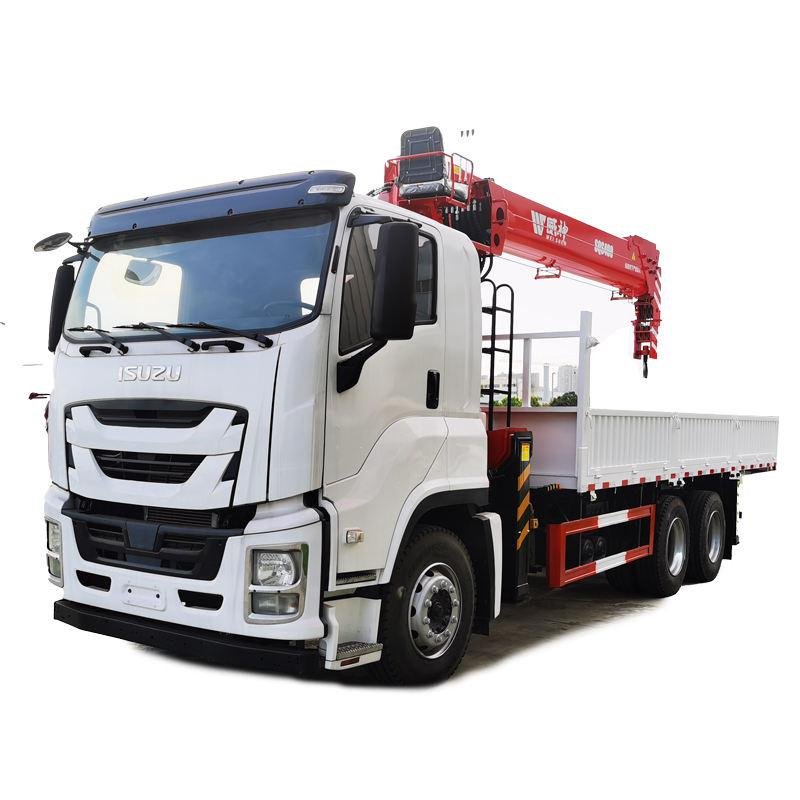

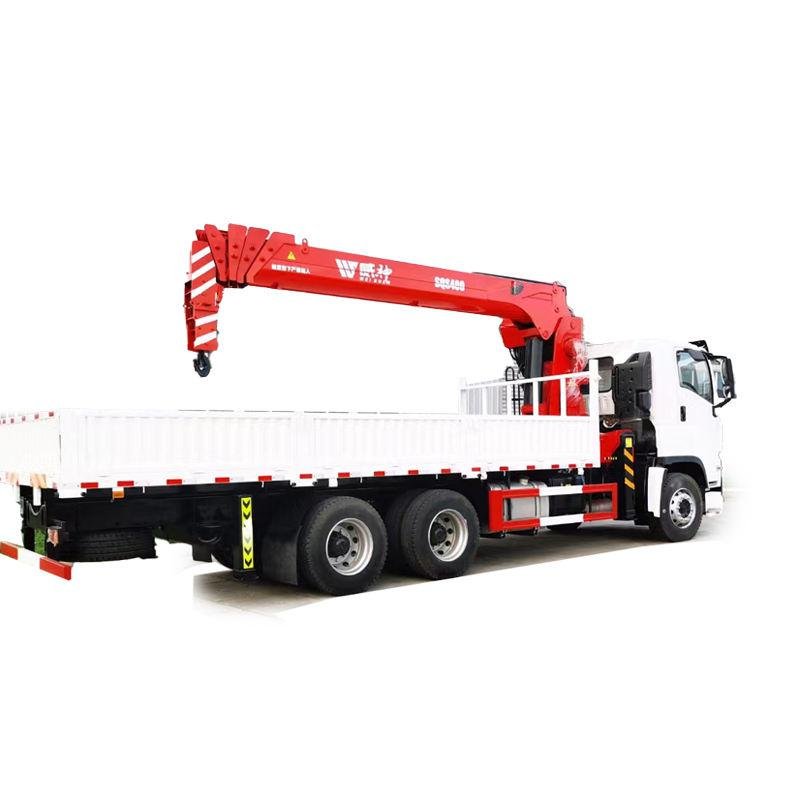

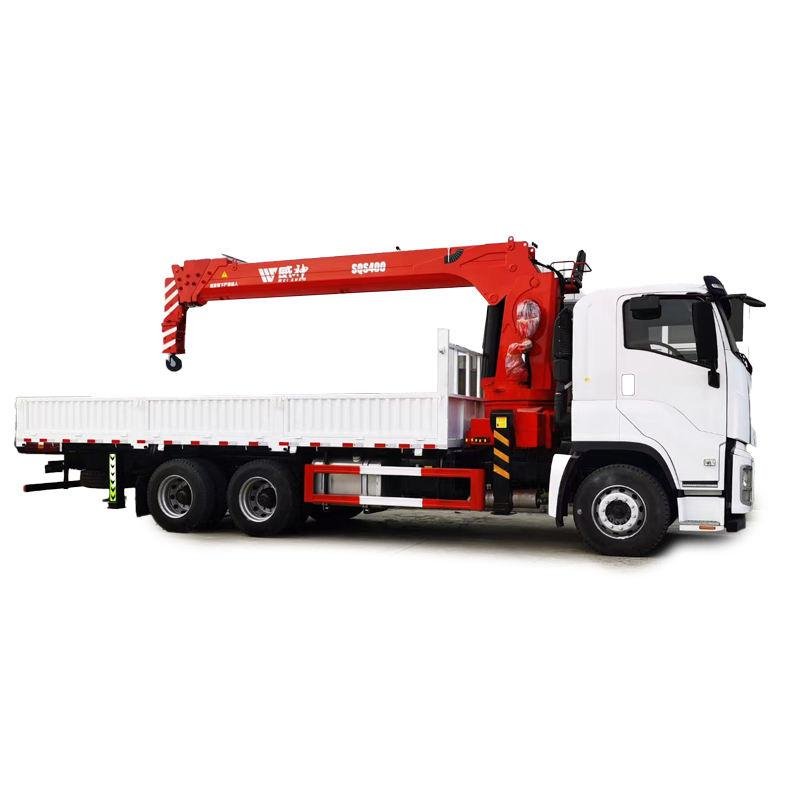

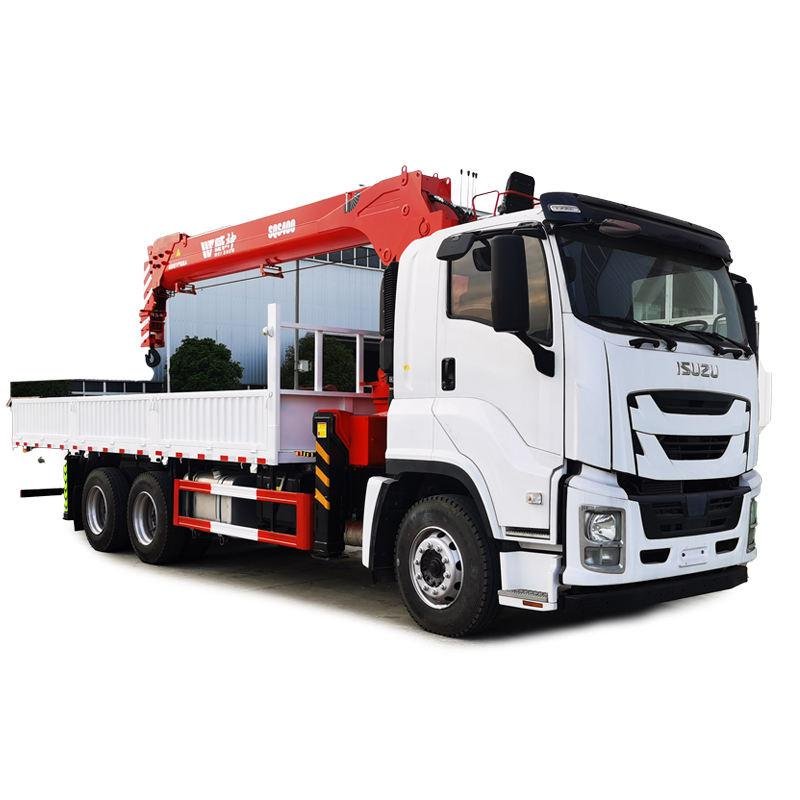

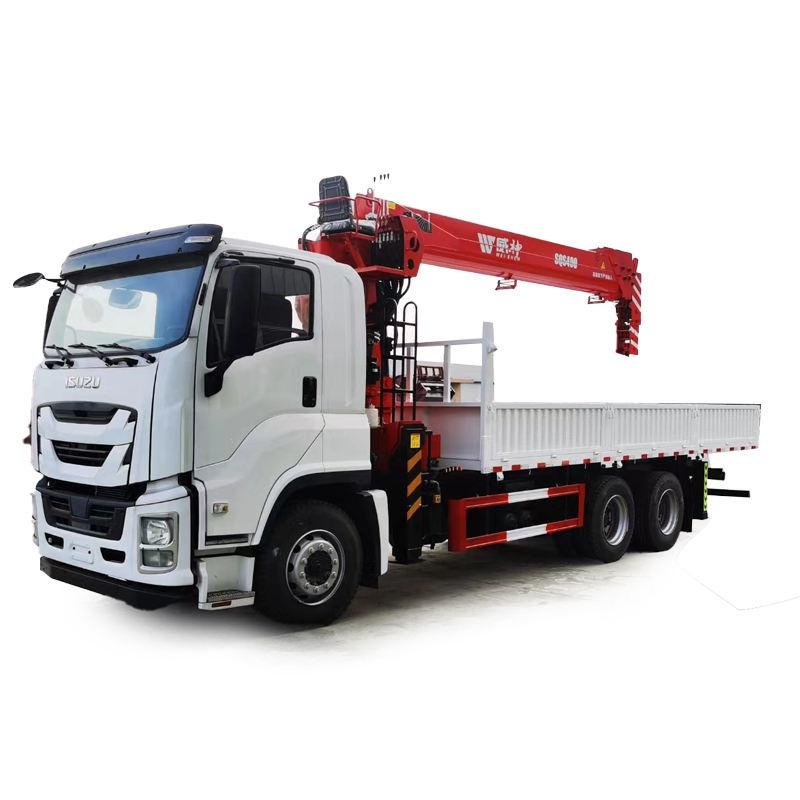

Product Image Gallery
