Executive Summary
The JMC 167kW Electric Refrigerated Light Truck represents a paradigm shift in sustainable cold chain transportation, combining proven commercial vehicle engineering with advanced zero-emission drivetrain technology. As governments worldwide implement stricter emissions regulations for urban logistics operations, this electric light truck delivers uncompromising payload capacity and refrigeration performance while eliminating tailpipe emissions entirely. Manufactured by Jiangling Motors Corporation, a leading Chinese commercial vehicle manufacturer with decades of expertise in light truck development, this refrigerated electric vehicle addresses the growing demand for eco-friendly temperature-controlled transport solutions across food distribution, pharmaceutical, and healthcare sectors.
Designed specifically for urban and suburban last-mile delivery applications, the JMC electric refrigerated truck offers a pure electric range of 309 kilometers, making it exceptionally well-suited for daily distribution routes without range anxiety. The integration of a 100.46kWh high-density lithium battery pack provides sufficient energy reserves to power both vehicle propulsion and independent refrigeration unit operation throughout typical workday cycles. With its 3360mm wheelbase and optimized cargo box dimensions, this light truck delivers the maneuverability required for congested city streets while maintaining sufficient load-carrying capacity for commercial cold chain applications.
The refrigerated version of this electric truck comes factory-ready for seamless refrigeration unit installation, enabling operators to maintain precise temperature control between -25°C and +25°C depending on cargo requirements. Fleet operators transitioning to this electric solution can expect significant reductions in operational expenditure through elimination of diesel fuel costs, reduced maintenance requirements, and access to preferential electricity tariffs during off-peak charging hours.
Performance & Engineering
The JMC electric refrigerated light truck is powered by a permanent magnet synchronous motor delivering 167 kilowatts of continuous power output, equivalent to 227 horsepower in traditional internal combustion terminology. This substantial power rating ensures confident acceleration under full load conditions while maintaining smooth, instant torque delivery characteristic of electric drivetrains. The advanced single-speed transmission eliminates gear shifting complexity, providing seamless power delivery from zero to the electronically-limited top speed of 100 kilometers per hour, optimized for urban and regional highway driving patterns typical of cold chain distribution routes.
Underpinning the vehicle is a robust ladder-frame chassis specifically engineered to accommodate the additional weight of refrigeration equipment and temperature-controlled cargo while maintaining durable commercial vehicle characteristics. The 3360mm wheelbase strikes an optimal balance between load distribution, turning radius, and stability during highway cruising, ensuring confident handling across diverse road conditions. The gross vehicle weight rating of 3,500 kilograms (3.5 tons) positions this truck firmly within the light truck category while providing meaningful payload capacity for commercial cold chain applications.
The heart of the vehicle's zero-emission capability lies in its 100.46kWh lithium iron phosphate (LFP) battery pack, selected for superior thermal stability, extended cycle life, and enhanced safety characteristics compared to alternative chemistries. Fast charging capability enables 0-80% battery restoration in approximately 0.6 hours using DC fast charging infrastructure, minimizing vehicle downtime and maximizing fleet utilization. The sophisticated battery management system (BMS) continuously monitors cell voltages, temperatures, and charging states to optimize energy utilization and extend overall battery pack service life, critical for total cost of ownership calculations in commercial fleet operations.
Key Advantages & Features
- Zero-Emission Cold Chain Operations: Fully electric drivetrain eliminates direct tailpipe emissions, enabling unrestricted access to low-emission zones, city centers, and environmentally sensitive areas where diesel vehicles face operational bans or surcharges.
- Extended Pure Electric Range: The 309-kilometer electric range accommodates typical daily distribution routes without requiring mid-day charging stops, reducing operational complexity and driver range management concerns.
- Rapid Charging Technology: 0.6-hour fast charging capability allows for opportunity charging during scheduled breaks or loading/unloading stops, ensuring vehicles return to service quickly and maintain high fleet availability rates.
- Factory-Ready Refrigeration Integration: Pre-engineered mounting points, electrical interfaces, and power take-off (PTO) provisions facilitate straightforward installation of major refrigeration brands including Carrier Transicold, Thermo King, and Kubota units.
- Low Operating Costs: Electric propulsion eliminates diesel fuel expenses while the simplified drivetrain with fewer moving parts reduces maintenance intervals, parts replacement costs, and workshop labor hours compared to conventional refrigerated trucks.
- Silent Nighttime Operations: The whisper-quiet electric motor enables temperature-controlled deliveries during restricted hours in noise-sensitive residential areas, expanding operational windows and improving delivery scheduling flexibility.
- Driver Comfort and Safety: The 3-seat cab provides comfortable accommodations for driver and crew members with modern instrumentation, climate control, and comprehensive active and passive safety features expected in contemporary commercial vehicles.
- Telematics-Ready Architecture: Built-in connectivity systems support fleet management integration, real-time vehicle tracking, remote diagnostics, and optimization of charging schedules aligned with logistics operations.
Specifications Table
| Specification | Value |
|---|---|
| Manufacturer | Jiangling Motors Corporation (JMC) |
| Vehicle Type | Electric Refrigerated Light Truck |
| Place of Origin | Shandong, China |
| Motor Power Output | 167 kW (227 PS) |
| Battery Capacity | 100.46 kWh |
| Pure Electric Range | 309 km |
| Fast Charging Time | 0.6 hours (0-80%) |
| Overall Dimensions (L×W×H) | 5990 × 2120 × 3105 mm |
| Wheelbase | 3360 mm |
| Cargo Box Dimensions | 4770 × 1895 × 1689 cm |
| Seating Capacity | 3 Persons |
| Maximum Speed | 100 km/h |
| Kerb Weight | 1,780 kg |
| Gross Vehicle Weight Rating | 3,500 kg |
| Temperature Control Range | -25°C to +25°C (with refrigeration unit) |
| Drive Configuration | Rear-Wheel Drive (RWD) |
Ideal Applications
- Fresh Food Distribution: The electric refrigerated truck excels in transporting perishable goods including dairy products, fresh produce, meat, and frozen foods from distribution centers to retail outlets, supermarkets, and restaurant groups seeking to reduce their carbon footprint while maintaining product freshness throughout the supply chain.
- Pharmaceutical and Medical Supply Transport: Temperature-sensitive medications, vaccines, biologics, and medical devices require precise climate control within narrow temperature bands. The refrigeration-ready chassis accommodates pharmaceutical-grade cooling systems meeting GDP (Good Distribution Practice) requirements for healthcare logistics operations.
- Floral and Horticultural Delivery: Cut flowers, live plants, and horticultural products demand controlled-temperature environments to preserve freshness and extend shelf life from greenhouse to retail point-of-sale locations.
- Ice Cream and Frozen Confectionery: The sustained cooling capability supports distribution of frozen desserts and ice cream products that require uninterrupted cold chain maintenance at -18°C or below, even during summer months in challenging ambient conditions.
- Urban Last-Mile Delivery: With zero-emission credentials and silent operation capabilities, this vehicle is particularly well-suited for early morning or late evening deliveries in residential neighborhoods, university campuses, hospital complexes, and urban centers with strict noise and emissions regulations.
- E-commerce Fulfillment Center Operations: The expanding e-commerce grocery and fresh food delivery sector requires reliable refrigerated transport for direct-to-consumer orders, utilizing this electric truck for route efficiency and sustainability reporting requirements.
- Catering and Event Catering Supply: Professional catering companies delivering prepared foods for corporate events, weddings, and institutional dining benefit from the clean, quiet operation and reliable temperature maintenance this electric refrigerated solution provides.

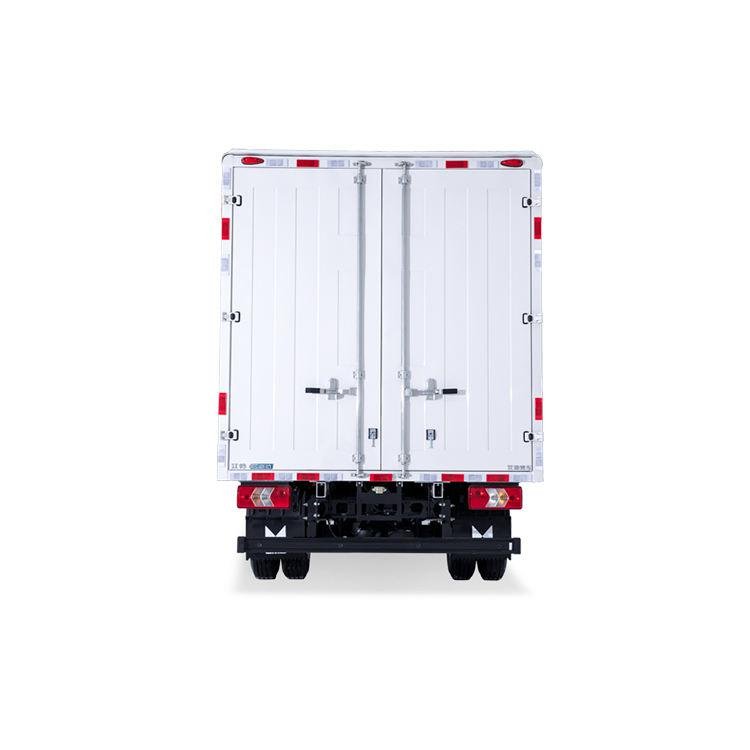

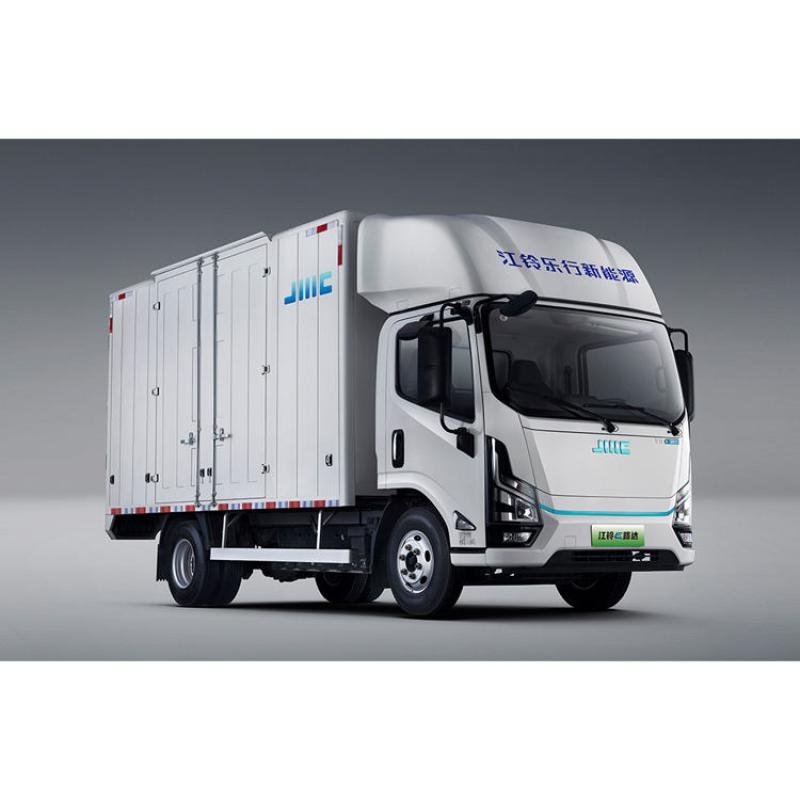

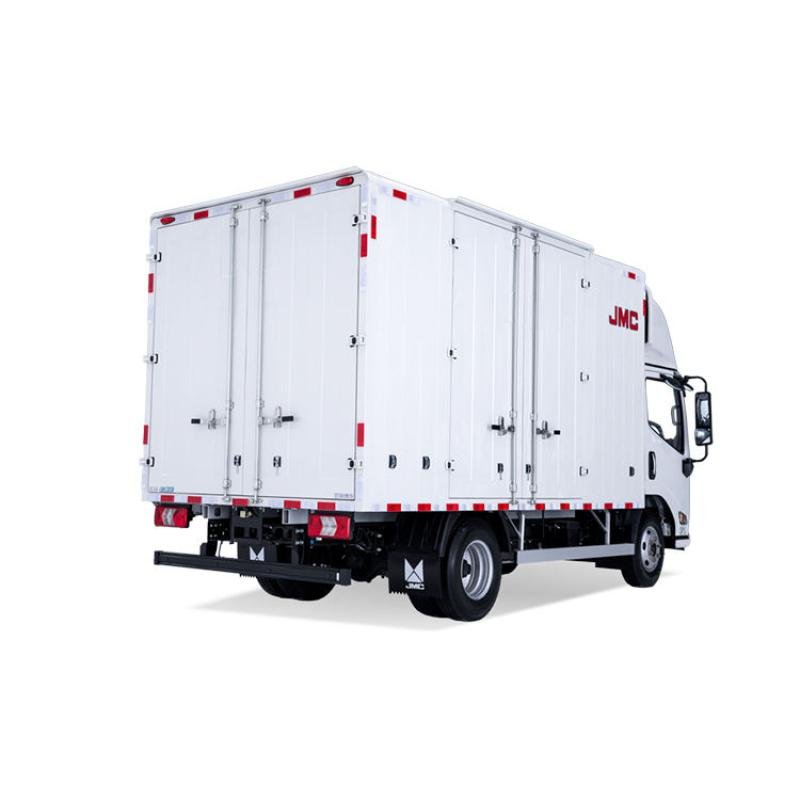

Product Image Gallery
Model
JMC Truck
Cabin
3
Make
Jiangling
Horsepower(HP)
227
Dimensions(mm)
5990x2120x3105
Wheelbase(mm)
3360
GVW(kg)
1780
Alpine Special Purpose Vehicles
-
Address:
Gewerbepark 14, Vienna, Vienna, Austria
-
Contact Seller:
+43 1 555 4421
Alpine Commercial Vehicles provides used trucks, trailers, and transport solutions to customers across Austria and neighboring European markets. Based in Vienna, we offer well-maintained vehicles suited for long-distance and regional transport operations. Our inventory includes refrigerated units, tankers, and heavy-duty tractors. We emphasize honest descriptions and clear communication to ensure smooth transactions. With years of experience in the commercial vehicle sector, Alpine CV supports logistics companies seeking dependable and cost-effective equipment.
The JMC electric refrigerated truck delivers a pure electric range of 309 kilometers on a single charge under standard test conditions. When operating with a fully loaded refrigeration unit at typical highway speeds, the effective range may reduce to approximately 250-280 kilometers depending on ambient temperature, cargo weight, and refrigeration unit power draw. For most urban and regional distribution routes under 150 kilometers round-trip, operators can complete multiple daily runs with opportunity charging during loading stops.
The JMC electric refrigerated truck supports DC fast charging at rates up to 150kW, enabling 0-80% state-of-charge restoration in approximately 0.6 hours. Using a standard AC Level 2 charging station (22kW), a full charge from near-empty to 100% would require approximately 4-5 hours. Fleet operators should install dedicated charging infrastructure at their depots, preferably with smart charging management to optimize electricity costs through off-peak charging schedules.
The vehicle is designed for seamless integration with all major commercial refrigeration brands including Carrier Transicold Supra series, Thermo King T-series and SLXi models, and Kubota diesel-powered or electric-powered refrigeration units. The chassis includes factory-provisioned power take-off (PTO) connections and electrical interfaces rated to supply sufficient current for refrigeration compressor operation without compromising vehicle propulsion battery reserves during extended stops.
With a gross vehicle weight rating of 3,500 kilograms and a kerb weight of 1,780 kilograms, the JMC electric refrigerated truck provides a maximum payload capacity of approximately 1,720 kilograms for cargo and refrigeration equipment combined. The insulated cargo box typically weighs between 400-600 kilograms depending on specification, leaving 1,100-1,300 kilograms of net cargo capacity, which is competitive with equivalent diesel-powered light refrigerated trucks.
Cold weather operations present typical challenges for electric vehicles including reduced battery efficiency at temperatures below 10°C, increased cabin heating demands, and greater refrigeration unit workload. The JMC truck addresses these concerns through active battery thermal management that pre-warms the battery pack during charging in cold conditions. Range in winter months may decrease by 15-25% compared to temperate conditions, so operators should plan routes accordingly and consider battery capacity when calculating daily operational range requirements.
