Executive Summary
The Lvtong LT604C Electric UTV represents a significant advancement in compact utility vehicle engineering, combining robust 4WD capability with clean electric propulsion technology. This professional-grade utility task vehicle is specifically engineered for operators seeking sustainable, high-performance transportation solutions across challenging terrains without compromising on payload capacity or operational reliability. As industries increasingly prioritize emissions reduction and operational efficiency, the LT604C emerges as an ideal choice for commercial applications demanding zero-emission mobility with uncompromised utility performance.
Powered by an advanced 48V lithium battery system driving a 4KW electric motor, this electric UTV delivers exceptional torque exceeding 80Nm while maintaining whisper-quiet operation suitable for noise-sensitive environments. The innovative switchable 2WD/4WD drivetrain provides operators with flexible power management, enabling efficient 2WD mode for flat terrain cruising and engaging 4WD for maximum traction when traversing inclines up to 25 degrees or navigating uneven ground conditions. With EPA and EEC certifications, this utility vehicle meets stringent international environmental and safety standards, making it particularly attractive for operations in ecologically sensitive areas or regions with strict emissions regulations.
The LT604C's industrial-grade construction features a reinforced steel chassis supporting an 878kg curb weight with payload capacities reaching 300kg, demonstrating remarkable durability for sustained commercial use. Its thoughtfully designed dimensions of 3630×1640×2150mm provide an optimal balance between maneuverability and interior workspace, while the impressive 310mm minimum ground clearance ensures confident navigation over obstacles, rough trails, and uneven terrain commonly encountered in agricultural, industrial, and outdoor recreational applications. The integration of computer intelligent charging technology with a 7-9 hour charge cycle enables convenient overnight recharging, maximizing vehicle availability for daily operational demands.
Performance & Engineering
The heart of the Lvtong LT604C Electric UTV consists of a sophisticated 48V/4KW electric motor paired with an advanced battery management system comprising 8V×6 deep-cycle lithium batteries. This powertrain configuration delivers immediate torque availability characteristic of electric drive systems, providing instantaneous acceleration response that surpasses conventional internal combustion engine alternatives. The automatic transmission eliminates shifting complexity, allowing operators to focus on tasks rather than drivetrain management while ensuring smooth power delivery across the vehicle's 40km/h maximum forward speed capability.
Chassis engineering emphasizes durability and stability through strategic reinforcement分布, supporting the substantial curb weight while maintaining responsive handling characteristics. The ≥2200mm wheelbase contributes to overall stability during high-speed transport and provides a comfortable ride over uneven terrain. Front and rear disc brake systems deliver confident stopping power with precise modulation, essential for safety-critical applications involving heavy loads or operation on slopes. The brake system's design ensures consistent performance even under demanding conditions, with heat dissipation properties preventing fade during extended descents.
Electrical system design incorporates computer intelligent charging technology that optimizes charging cycles to protect battery longevity while minimizing charge time within the 7-9 hour specification range. The charging system automatically adjusts parameters based on battery condition and temperature, ensuring safe, efficient energy replenishment from standard electrical infrastructure. This intelligent approach to battery management extends operational lifespan while maintaining consistent range performance throughout the vehicle's service life, reducing total cost of ownership for commercial fleet operators.
Key Advantages & Features
- Zero-Emission Electric Propulsion: The 48V lithium battery system delivers clean, emissions-free operation ideal for indoor facilities, ecologically sensitive areas, and operations meeting stringent environmental compliance requirements. This electric powertrain eliminates exhaust emissions, fuel spills, and reduces noise pollution significantly compared to conventional gas-powered UTVs.
- Switchable 2WD/4WD Drivetrain: Operators can conveniently toggle between two-wheel and four-wheel drive modes via an integrated control interface, optimizing traction and energy consumption based on terrain conditions. The 4WD mode engages additional traction resources for challenging conditions while 2WD mode extends driving range on suitable surfaces.
- Impressive Terrain Capability: With a grade ability rating of 15-25 degrees and 310mm ground clearance, this electric UTV confidently handles steep inclines, rough trails, and uneven terrain. The ≥300mm minimum ground clearance ensures reliable obstacle navigation without undercarriage contact.
- Extended Operating Range: The advanced lithium battery architecture delivers 70-100km driving mileage on a single charge, with maximum range reaching 100km under optimal conditions. This range capability supports full-day operational schedules for most commercial applications without requiring midday charging interruptions.
- Computer Intelligent Charging System: The automated charging system monitors battery condition, adjusts charging parameters, and protects battery health throughout the 7-9 hour charge cycle. This intelligent approach maximizes battery longevity and ensures safe, efficient energy replenishment.
- Substantial Payload Capacity: With payload capacities ranging from 200-300kg, this electric UTV accommodates equipment, supplies, and materials for demanding work applications. The robust steel chassis construction provides the structural integrity necessary for sustained heavy-load operations.
- EPA and EEC Certified: International certifications confirm compliance with rigorous environmental standards and safety requirements, providing confidence for operators in regulated industries and export markets requiring documented regulatory approval.
- Customization Options: Color customization support enables operators to match fleet vehicles with corporate branding or functional identification requirements, enhancing professional appearance and operational organization.
Specifications Table
| Motor Power | 48V/4KW Electric Motor |
| Battery Configuration | 8V×6 Deep Cycle Lithium Battery Pack |
| Maximum Torque | ≥80Nm |
| Forward Speed | 40km/h Maximum |
| Driving Mileage | 70-100km per charge |
| Charge Time | 7-9 hours |
| Driving Type | Switchable 2WD/4WD |
| Differential Lock | Not Equipped |
| Grade Ability | 15-25° (25-45% slope) |
| Wheelbase | ≥2200mm |
| Ground Clearance | 310mm Minimum |
| Dimensions (L×W×H) | 3630×1640×2150mm |
| Curb Weight | 878kg |
| Payload Capacity | 200-300kg |
| Brake System | Front Disc + Rear Disc |
| Transmission | Automatic |
| Certifications | EEC, EPA |
| Color Options | Customization Available |
| Manufacturer | Lvtong (Guangdong, China) |
| Model Number | LT604C |
Ideal Applications
- Agricultural Operations: Farm and vineyard management benefits significantly from the LT604C's zero-emission operation, enabling safe use in enclosed environments such as greenhouses and livestock facilities. The 4WD capability handles muddy field conditions while the substantial payload capacity accommodates tools, supplies, and harvested produce transport across expansive agricultural properties.
- Industrial Facility Maintenance: Manufacturing plants, warehouses, and distribution centers requiring efficient intra-facility transport find the electric UTV's compact dimensions and turning radius advantageous for navigating between production lines and storage aisles. The quiet operation minimizes disruption to ongoing operations while providing reliable utility transport capability.
- Campus and Resort Transportation: Universities, corporate campuses, resorts, and theme parks benefit from the EPA-certified zero-emission operation in pedestrian-heavy environments. The vehicle's professional appearance and customization options support corporate branding while delivering practical transportation utility for staff and light equipment movement.
- Outdoor Recreation and Tourism: Eco-tourism operators, hunting lodges, and outdoor adventure facilities appreciate the quiet, emissions-free operation that minimizes environmental impact while providing guests with capable off-road transportation. The 4WD system handles trail conditions while maintaining the low-noise characteristics that preserve natural surroundings.
- Municipal and Government Services: Park maintenance departments, utility companies, and municipal services requiring reliable, low-maintenance transportation find the LT604C's certification compliance and operating cost advantages particularly compelling. The vehicle's durability and customization options support diverse municipal application requirements.

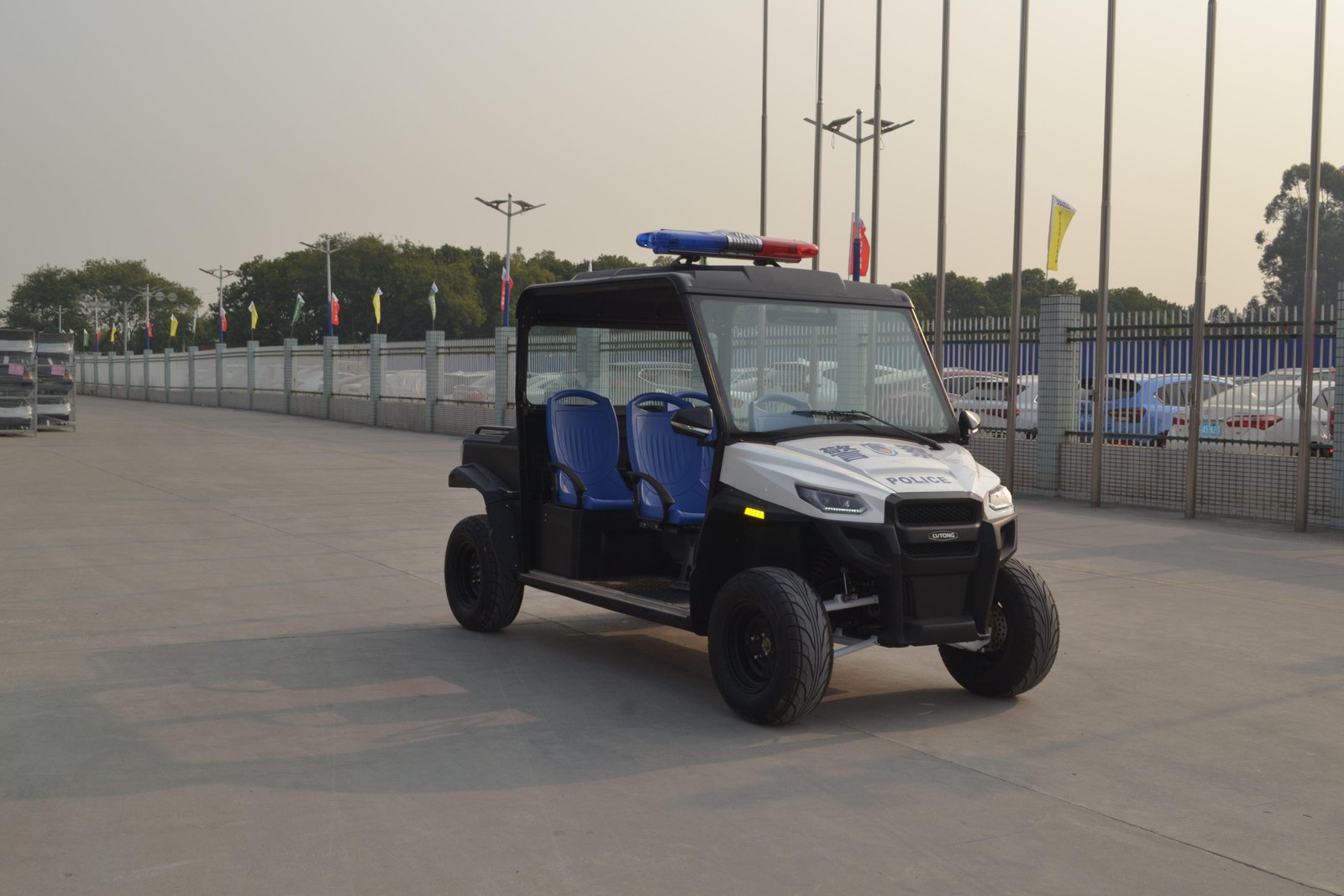

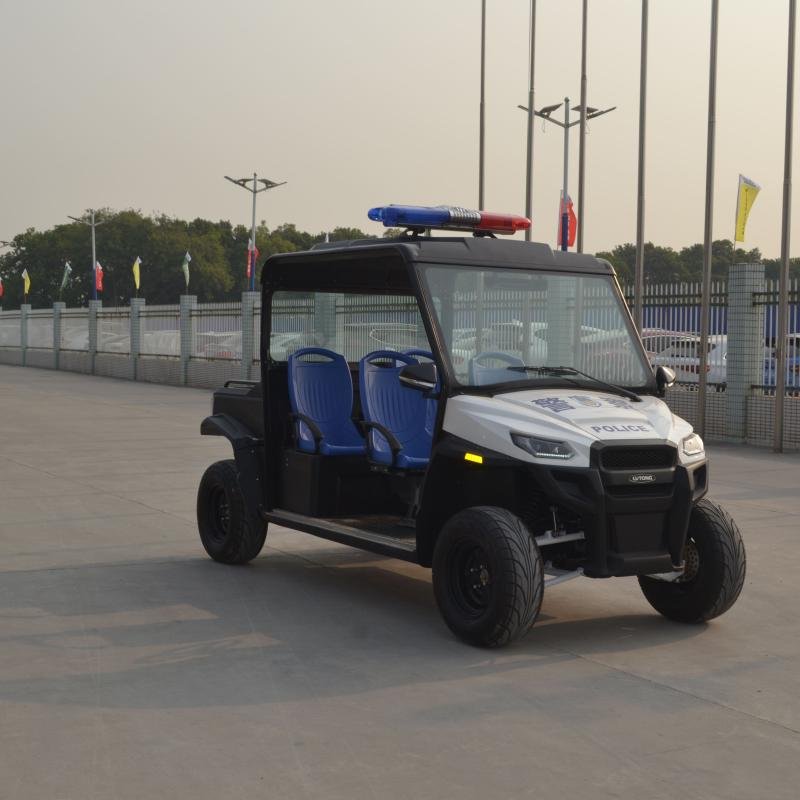

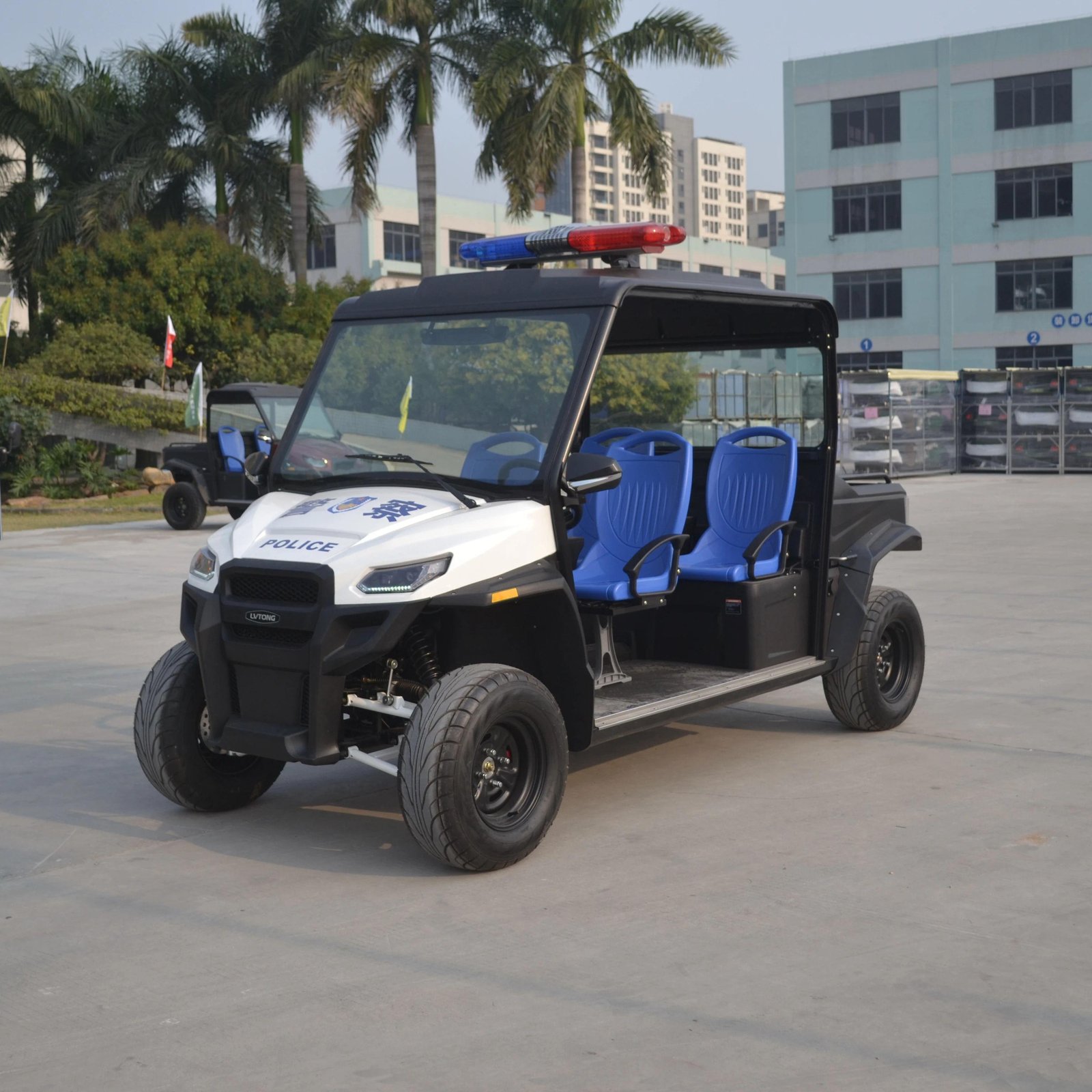

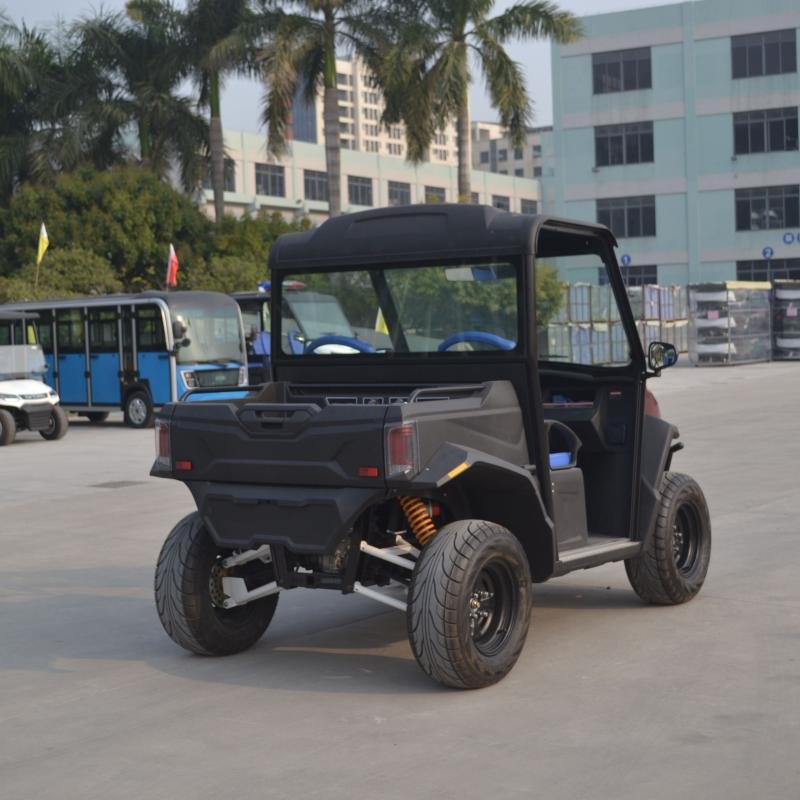

Product Image Gallery
Model
LT604C
Make
Lvtong
Torque(N.m)
≥80Nm
Dimensions(mm)
3630*1640*2150
Wheelbase(mm)
≥2200mm
Curb Weight(kg)
≥500kg
Payload(kg)
200-300kg
-
Address:
Hexi Industry Park, Zhengteng Industry Zone,Hongmei, Dongguan City, Guangdong Province, China
-
Contact Seller:
+86-769-22773916
The Lvtong LT604C delivers a driving mileage of 70-100km per charge depending on operating conditions, load weight, terrain difficulty, and driving style. Under optimal conditions with moderate loads on flat terrain, maximum range approaches 100km. Heavier payloads, steeper grades, and aggressive driving patterns will reduce effective range within the specified parameters. The intelligent battery management system optimizes energy delivery to maximize operational efficiency across varying conditions.
The switchable 2WD/4WD drivetrain provides versatile operational flexibility by allowing operators to select the appropriate drive mode for current conditions. In 2WD mode, the vehicle operates more efficiently on flat, dry surfaces with good traction, extending driving range and reducing unnecessary tire wear. When engaging 4WD mode, additional power routes to all four wheels, providing enhanced traction for muddy conditions, steep inclines up to 25 degrees, uneven terrain, and situations requiring maximum stability.
The LT604C utilizes a computer intelligent charger compatible with standard 110V or 220V electrical outlets commonly available in commercial and residential settings. The integrated charging system automatically adjusts charging parameters based on battery condition and temperature, ensuring safe, efficient energy replenishment. A complete charge cycle requires 7-9 hours, making overnight charging from conventional outlets the recommended operational approach for daily use applications.
Electric UTVs like the Lvtong LT604C offer significantly reduced maintenance requirements compared to gasoline-powered counterparts. The absence of internal combustion engine components eliminates oil changes, spark plug replacements, fuel system maintenance, and exhaust system repairs. Primary maintenance focuses on brake system inspection and servicing, tire maintenance, suspension checks, and periodic battery health verification. The simplified drivetrain with automatic transmission reduces wear components and associated maintenance intervals.
The LT604C demonstrates excellent terrain capability with a grade ability rating of 15-25 degrees (approximately 25-45% slope), enabling confident operation on steep inclines commonly encountered in agricultural terrain, construction sites, and off-road recreational applications. The 310mm ground clearance provides sufficient undercarriage protection when navigating rocks, roots, and uneven surfaces. Combined with the switchable 4WD system and substantial torque output from the 4KW electric motor, this UTV handles demanding terrain conditions effectively.
