Executive Summary

The Tarzan 60-Ton 4-Axle Low Bed Semi-Trailer represents the pinnacle of heavy-duty transport engineering, purpose-built for the transportation of construction machinery, industrial equipment, and oversized loads. This low bed semi-trailer has been meticulously designed to meet the rigorous demands of heavy-haul logistics operations, offering an exceptional combination of payload capacity, structural integrity, and operational reliability. With its expansive 14-meter loading platform and advanced 4-axle configuration, this trailer provides the stability and support necessary for safely transporting valuable heavy machinery over long distances.

Manufactured in Henan, China, by the reputable Tarzan brand, this low bed trailer exemplifies quality craftsmanship combined with practical engineering solutions. The trailer's low-profile design significantly reduces the overall center of gravity during transport, enhancing stability and safety when hauling tall machinery such as excavators, bulldozers, and specialized industrial equipment. The high-tensile steel construction ensures maximum durability while maintaining an optimal weight-to-strength ratio, allowing operators to maximize payload efficiency without compromising structural integrity or regulatory compliance.

In today's competitive heavy equipment transport market, reliability and efficiency are paramount. The Tarzan 60-ton low bed semi-trailer addresses these critical requirements through its proven component package, including premium mechanical suspension, JOST landing gear, and advanced WABCO braking technology. Fleet operators and logistics companies seeking a dependable solution for heavy machinery transport will find this trailer delivers exceptional return on investment through its longevity, reduced maintenance requirements, and superior performance in challenging operating environments.

Performance & Engineering

The mechanical suspension system integrated into this low bed semi-trailer represents a time-tested engineering solution for heavy-load transport applications. This suspension configuration provides superior shock absorption and load stabilization, effectively protecting both the trailer structure and the valuable cargo being transported. The mechanical design offers excellent durability under continuous heavy-duty operation, reducing maintenance costs and downtime compared to more complex air suspension systems while delivering reliable performance across varied road conditions and terrain types.

Power transmission and braking performance are ensured through the WABCO relay valve brake system, an industry-standard solution recognized globally for its responsiveness and reliability. This advanced braking system provides precise control during deceleration and emergency stops, enhancing overall safety for the transport operation. Complementing the braking system is the heavy-duty leaf spring configuration, which works in harmony with the mechanical suspension to absorb road vibrations and distribute loads evenly across all four axles.

The trailer's chassis construction utilizes high-tensile steel throughout its framework, providing exceptional resistance to torsional stress and structural fatigue. The 14,000 x 2,600 x 1,800 mm dimension provides an optimal balance between loading capacity and maneuverability, accommodating a wide range of heavy equipment configurations while remaining compatible with standard highway transportation requirements. The 90#/50# king pin system ensures a secure and stable connection with compatible prime movers, creating a reliable fifth-wheel coupling essential for safe heavy-haul operations.

Key Advantages & Features

• 60-Ton Maximum Payload Capacity: Engineered to handle substantial loads with confidence, this trailer maximizes operational efficiency by enabling operators to transport heavier machinery in fewer trips, reducing overall transportation costs and fuel consumption per ton of cargo moved.
• 4-Axle Configuration for Superior Load Distribution: The four-axle design effectively distributes the 60-ton payload across multiple contact points, minimizing ground pressure, reducing wear on road surfaces, and ensuring compliance with axle weight regulations for legal highway operation.
• Heavy-Duty Mechanical Suspension System: The robust mechanical suspension delivers exceptional load-carrying capability with reliable damping characteristics, protecting cargo from road shocks while maintaining stable handling characteristics under full load conditions.
• High-Tensile Steel Chassis Construction: Premium-grade steel materials provide outstanding strength-to-weight ratios, ensuring long-term structural integrity and resistance to fatigue from repetitive heavy-load cycles typical in demanding transport applications.
• JOST 28-Ton Landing Gear System: Equipped with internationally recognized JOST landing gear, the trailer offers reliable support during loading and unloading operations, with the 28-ton capacity rating ensuring stability even when fully loaded.
• WABCO Advanced Braking Technology: The WABCO relay valve brake system provides precise, responsive braking performance, enhancing safety during deceleration and emergency situations while reducing brake wear and maintenance requirements.
• Low Bed Design for Height-Restricted Cargo: The low-profile loading platform accommodates tall machinery and equipment that would exceed height restrictions on standard flatbed trailers, expanding the range of transportable cargo types.
• 12R22.5 Heavy-Duty Tires: The specified tire size provides optimal load-carrying capacity, durability, and availability, ensuring reliable performance and simplified replacement scheduling for fleet maintenance operations.

Specifications Table

Ideal Applications

• Construction Equipment Transport: This low bed trailer excels at transporting excavators, bulldozers, wheel loaders, and cranes between job sites and depots. The low loading height facilitates easy equipment access, while the 60-ton capacity accommodates virtually all standard construction machinery sizes and weights.
• Mining and Quarrying Operations: Moving heavy mining equipment including rock crushers, drilling rigs, and mineral processing machinery requires trailers capable of handling extreme loads. The mechanical suspension and 4-axle configuration provide the stability and load distribution essential for these demanding applications.
• Infrastructure and Road Construction: For projects requiring movement of asphalt plants, concrete mixers, and specialized construction equipment, this trailer delivers reliable performance across both paved highways and unpaved access roads leading to construction sites.
• Agricultural Machinery Logistics: Large agricultural equipment including combine harvesters, tractors, and specialized farming machinery benefit from the low bed design, which provides secure transport for tall equipment with limited dismantling requirements.
• Industrial Manufacturing and Assembly: Transporting heavy industrial machinery, wind turbine components, and large-scale manufacturing equipment between factories and installation sites demands the payload capacity and dimensional flexibility offered by this trailer configuration.
• Equipment Rental and Leasing Operations: Rental companies maintaining fleets of heavy machinery rely on versatile trailers like this to deliver and retrieve equipment from customer locations efficiently, maximizing fleet utilization and revenue potential.
• Energy Sector Support: From oil field equipment transport to renewable energy infrastructure deployment, this trailer handles the diverse heavy-haul requirements of the energy industry with reliability and regulatory compliance.

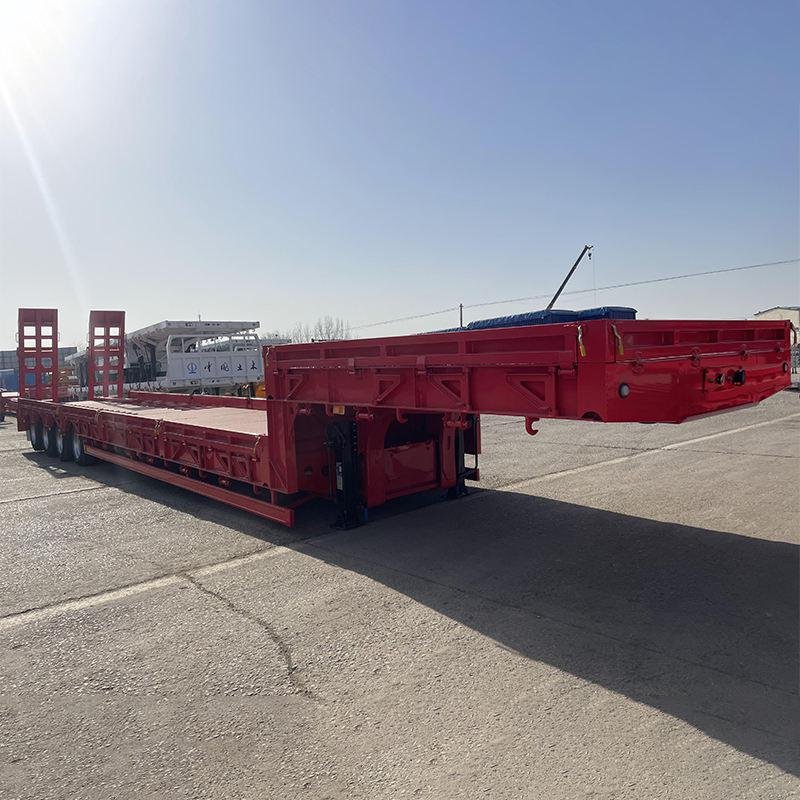

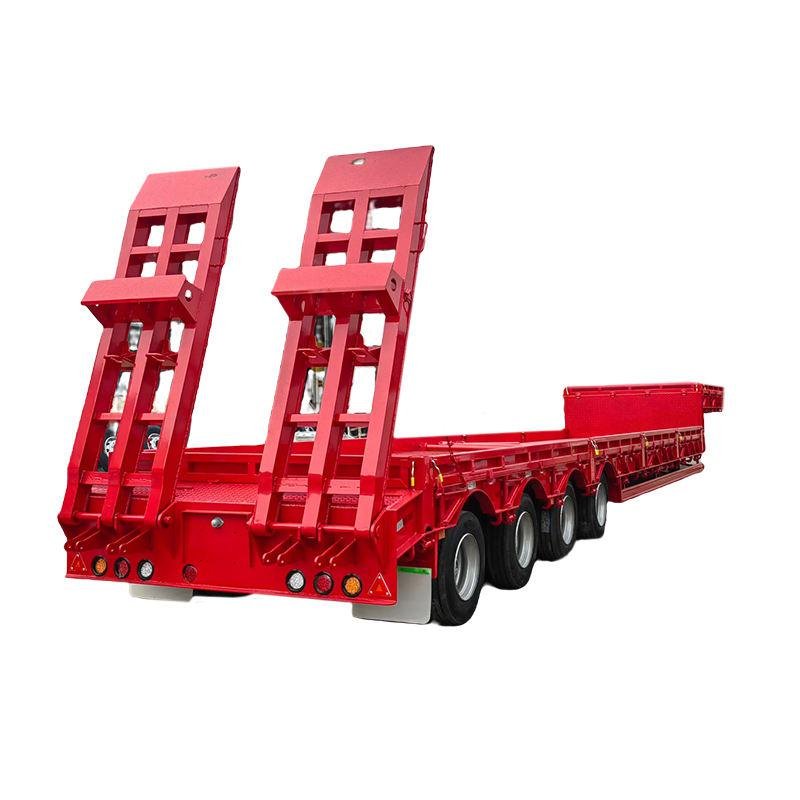

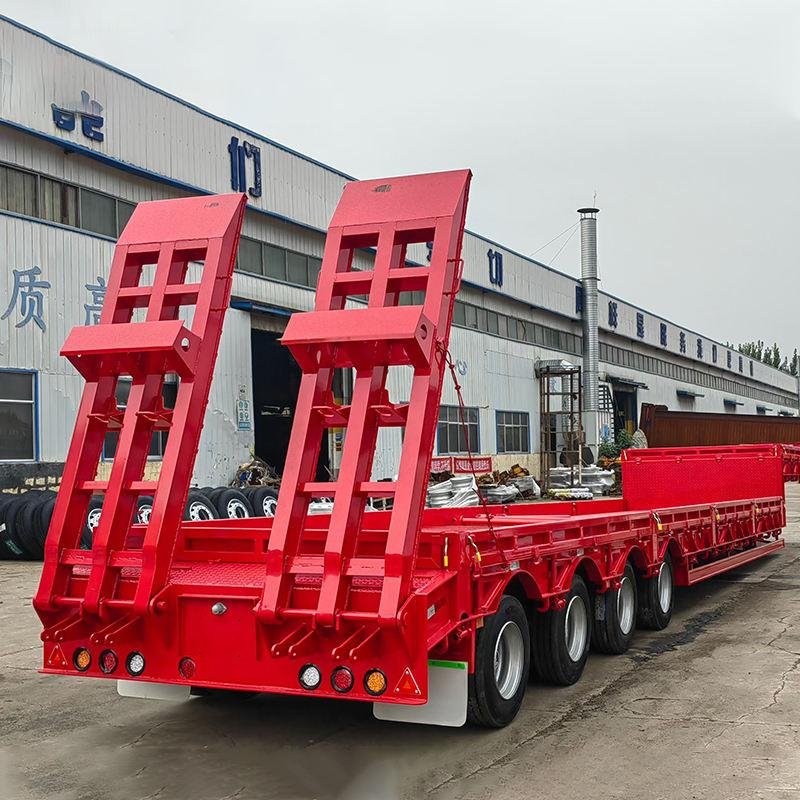

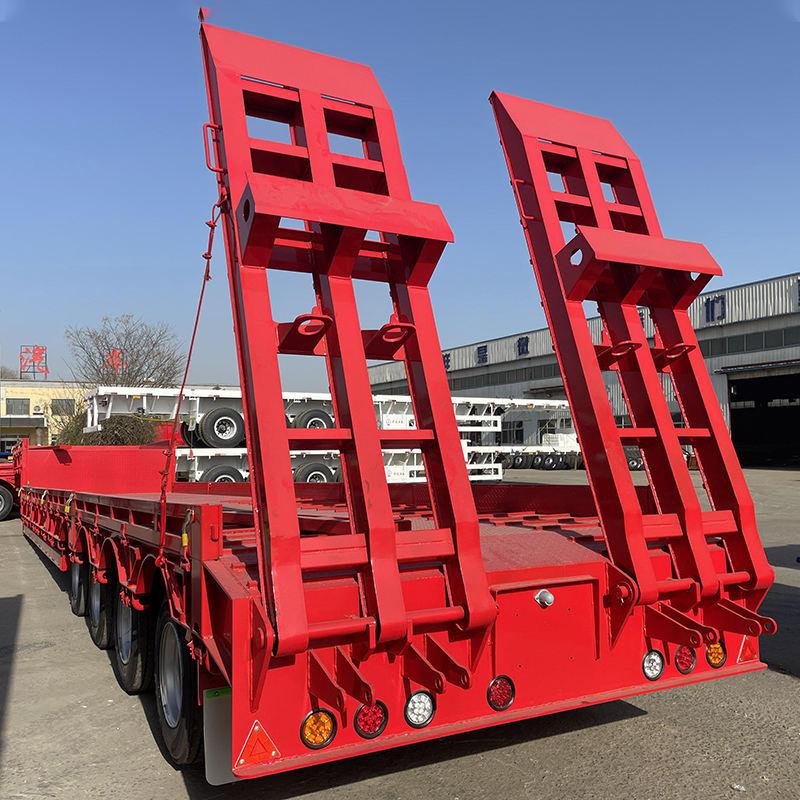

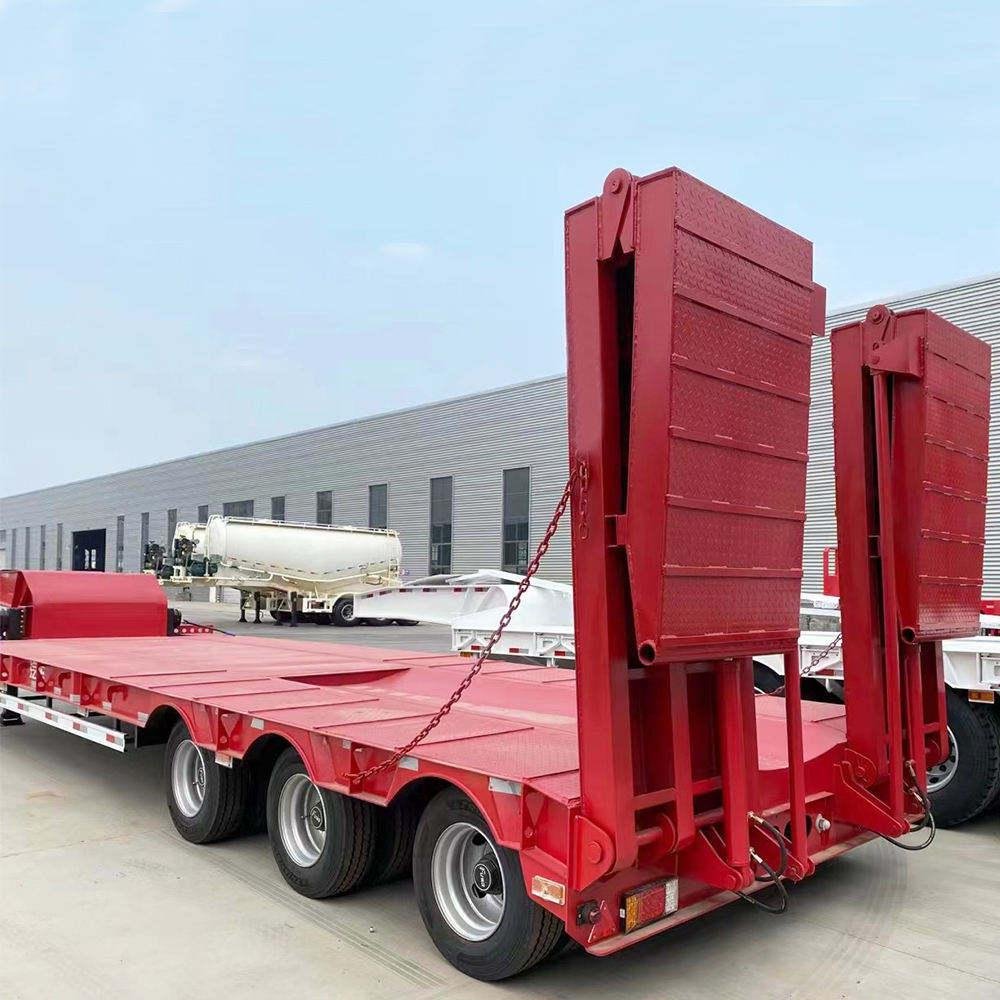

Product Image Gallery
